MK905

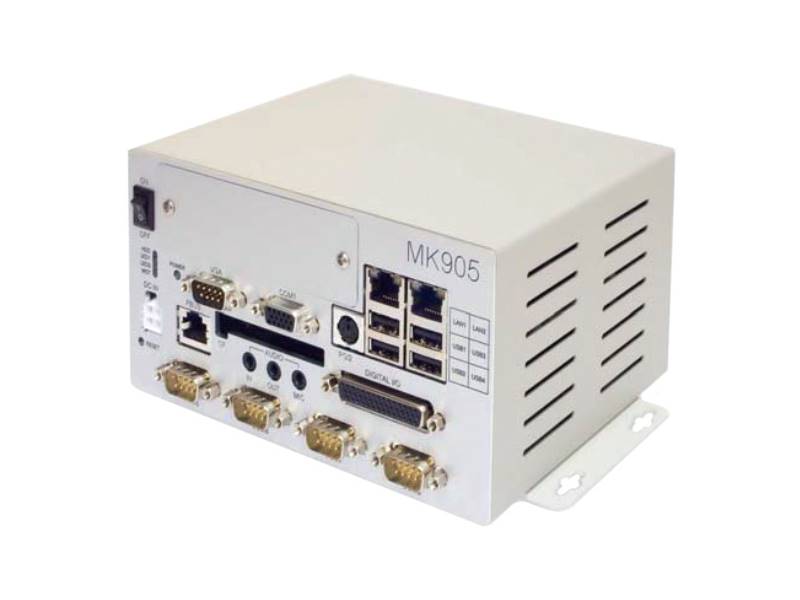

MK905 AMD GEODE LX 800 (500 MHz) based BOX PC

AMD GEODE LX 800 (500 MHz) based BOX PC

MK905

    •    CPU: AMD GEODE LX 800 (500 MHz)
    •    RAM: 256 MB
    •    Connector for Compact Flash (1, 2 type)
    •    Integrated Flash_drive: 1 GB
    •    VGA interface for the connection of RGB monitor with resolution up to 1600x1200 (85 GHz) and 1920x1440 (75 GHz; 32 bit)
    •    2xEthernet 10/100 Mb
    •    Port for LCD and touch array or 12 (TTL) digital I/O lines
    •    4xUSB 2.0, 2ЧRS-232*, 4xRS-232/422/485*
    •    OS compatibility: FreeDOS; Windows XPе; Linux 2.6;
    •    QNX 4.25; QNX 6.5
    •    Operating temperature range: from –40°С to + 70°С

    Overview

    Downloads

    Order Info

    Sales & technical support

    MK905 Box PC is designed on the basis of CPB905 Module and PS351 Power Supply Module. The PC does not use the forced cooling and contains no moving parts. The structure makes it possible to install two PC/104+ extension modules.
    Datasheet (PDF 0.21 MB)
    MK905-01

    4×individually isolated serial ports RS-485/422 with data transfer speed up to 921 Kb/s; 256 MB DDR RAM/1GB NAND Flash/Compact Flash/FPGA/FBUS/DigitalIO/2×Ethernet/4×USB 2.0/1×RS-232/4×RS-422/485

    MK905-02

    4×serial ports RS-232 with data transfer speed up to 230 Kb/s; 256 MB DDR RAM/1GB NAND Flash/Compact Flash/FPGA/FBUS/Digital IO/2×Ethernet/4×USB 2.0/5×RS-232

    MK905-03

    4×individually isolated serial ports RS-485/422 with data transfer speed up to 921 Kb/s; 256 MB DDR RAM/1 GB NAND Flash/Compact Flash/FPGA/FBUS/DigitalIO/2×Ethernet/ 4×USB 2.0/2×RS-232/4×RS-422/485
