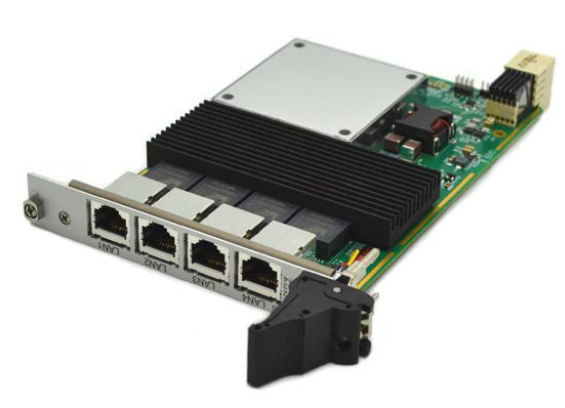

NIM552  3U CompactPCI Serial 4 x Gigabit Ethernet Interface Module

3U CompactPCI Serial 4 x Gigabit Ethernet Interface Module

NIM552

    -  Form-factor: CompactPCI Serial 3U/4HP;
    -  System bus: PCIe x4 Gen2;
    -  LED indication of network connections;
    -  Power supply: power supply voltage: 12V +/- 10%;
    -  Weight: 250 g max for NIM552-01 / NIM552-03 and 350 g max for NIM552-02 / NIM552-04;
    -  Operating temperature range: from -40 to +85°С;
    -  Overall dimensions: max (130.6 ± 0.4) × (212.4 ± 1.6) × (21.3 ± 0.5) mm;
    -  Software: Windows 10, Linux Debian 10;
    -  MTBF: at least 200,000 hours;

    Overview

    Downloads

    Sales & technical support

    The NIM552 module is based on the CompactPCI Serial 3U/4HP form-factor and implements 4 x Gigabit Ethernet interfaces, routed to the front panel via the RJ45 or M12-X connectors. The interfaces are arranged by the Intel® Ethernet Controller i350. NIM552 versions with PoE (Power over Ethernet) support are available.
    Datasheet (PDF 0.29 MB)
