Fanless 15” Panel PC

PPC-15FN2 Intel® Pentium® N4200

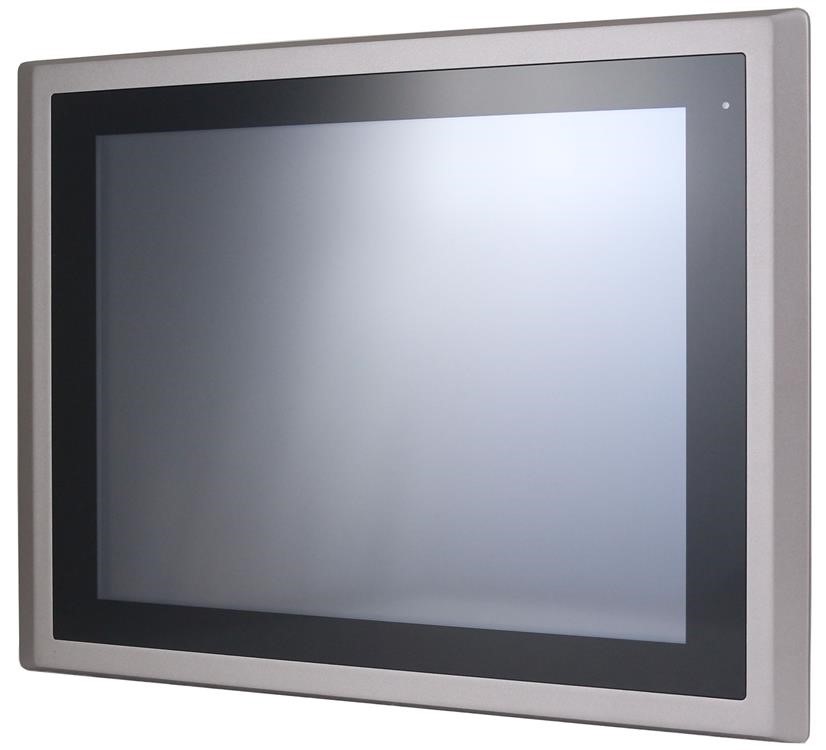

PPC-15FN2 Intel® Pentium® N4200 Fanless 15” Panel PC

- CPU: Intel® Pentium® N4200 (4 x cores, 1.1GHz/2.5GHz turbo) – by default, Intel® Celeron® N3350 (2 x cores, 1.1GHz/2.4GHz turbo) – as option;
- Audio: 2 x channel, Realtek® HD Audio;
- RAM: 4GB (soldered), up to 8GB in total, via the DDR3L-1666/1866 module, non ECC;
- Screen: 15”, resolution: 1024 х 768, with resistive touchscreen (capacitive as option), luminance: 300 cd/m² (1000 – option), contrast ratio: 2000:1 (800:1 for 1000 cd/m²);
- Network: 2 x Ethernet 10/100/1000 Intel® controllers, each on the PCI-E x1 bus;
- Power supply: 9-36V DC; 1 x 2-pin connector for remote activation/deactivation;
- Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
- OS compatibility: Microsoft Windows 10, Linux;
