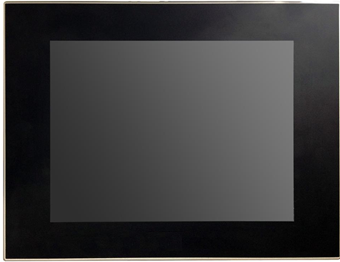

Fanless Low-Power 17” Panel PC

PPC-17FN Intel® Atom™ Dual Core D2550

PPC-17FN Intel® Atom™ Dual Core D2550 Fanless Low-Power 17” Panel PC

- CPU: Intel® Atom™ Dual Core D2550 (1.86 GHz, 1 MB cache), with HyperThreading support;
- Chipset: Intel® NM10;
- RAM: 1 – 4GB, 1 x DDR3 1066/1333 module, non ECC;
- Screen: 17”, resolution 1280 х 1024, with resistive touchscreen, luminance: 350 cd/m², contrast ratio: 700:1;
- Network: 2 x Ethernet 10/100/1000 Intel® 82574L controllers, each on the PCI-E x1 bus;
- Power supply: 12-24V DC;
- Cooling: convection, passive;
- Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
- OS compatibility: Microsoft Windows XP Embedded, Windows 7 (32 bit);
