Fanless Power-Efficient 15,6” Panel PC

PPC-A15 Freescale i.MX6 Dual Lite, ARM Cortex A9

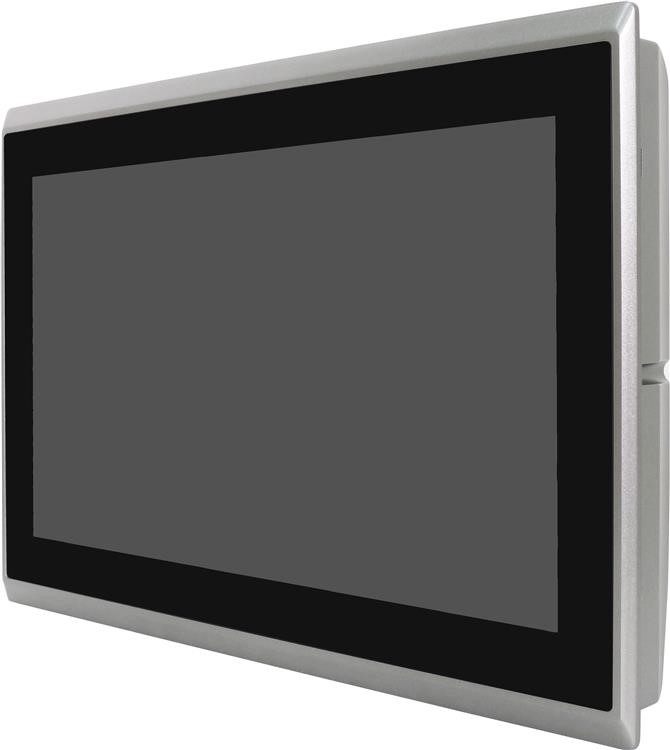

PPC-A15 Freescale i.MX6 Dual Lite, ARM Cortex A9 Fanless Power-Efficient 15,6”   Panel PC

- CPU: Freescale i.MX6 Dual Lite, ARM Cortex A9 (2x cores, 1.0 GHz);
- RAM: soldered 1GB DDR3 SDRAM;
- Screen: 15,6”, resolution: 1333 x 768, with resistive touchscreen (replacement with a capacitive touchscreen is available), luminance: 300 cd/m², maximum colors: 16.7 million;
- Protection class: IP66, front panel;
- Cooling: convection, passive;
- Power supply: 9 – 36V DC;
- Temperature range: from +5 to +40ºС (operation), from -20 to +60ºС (storage);
- OS compatibility: Android 6.0.1 / Linux 4.1.15 (option);
