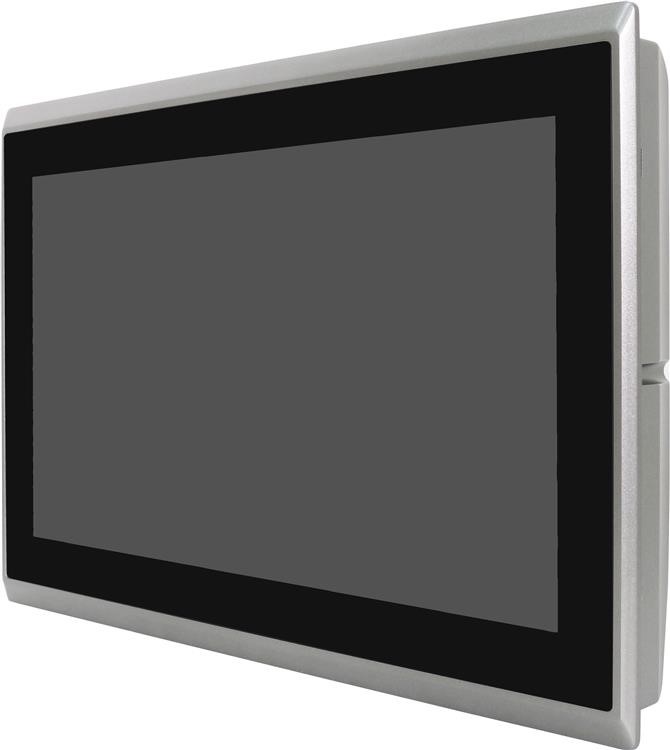

PPC-E16S Intel® Core™ i3-6100U High-Performance 15.6”  Fanless Panel PC

High-Performance 15.6” Fanless Panel PC

PPC-E16S Intel® Core™ i3-6100U

    - CPU: Intel® Core™ i3-6100U (2.3GHz, 3MB cache, 2 x cores Hyper-Threading), option: Intel® Core™ i5-6300U (2.4–3.0GHz, 3MB cache, Hyper-Threading);
    - RAM: 4 – 16GB, 1 x SO-DIMM DDR4 2133 module, non ECC;
    - Screen: 15.6” widescreen, resolution: 1366 х 768, with resistive touchscreen, luminance: 300 cd/m², contrast ratio: 500:1;
    - Network: 2 x Ethernet 10/100/1000 Intel® 82574L controllers (PCIe bus);
    - Audio: Realtek® 269Q HD Audio;
    - Protection class: IP66, front panel; IP20, rear panel;
    - Cooling: convection, passive;
    - Power supply: 9-36V DC;
    - Temperature range: +5°C ~ +40°C (with SSD), +5°C ~ +50°C (option);
    - OS compatibility: Microsoft Windows 7, Windows 8.1, Windows 10, Linux;
