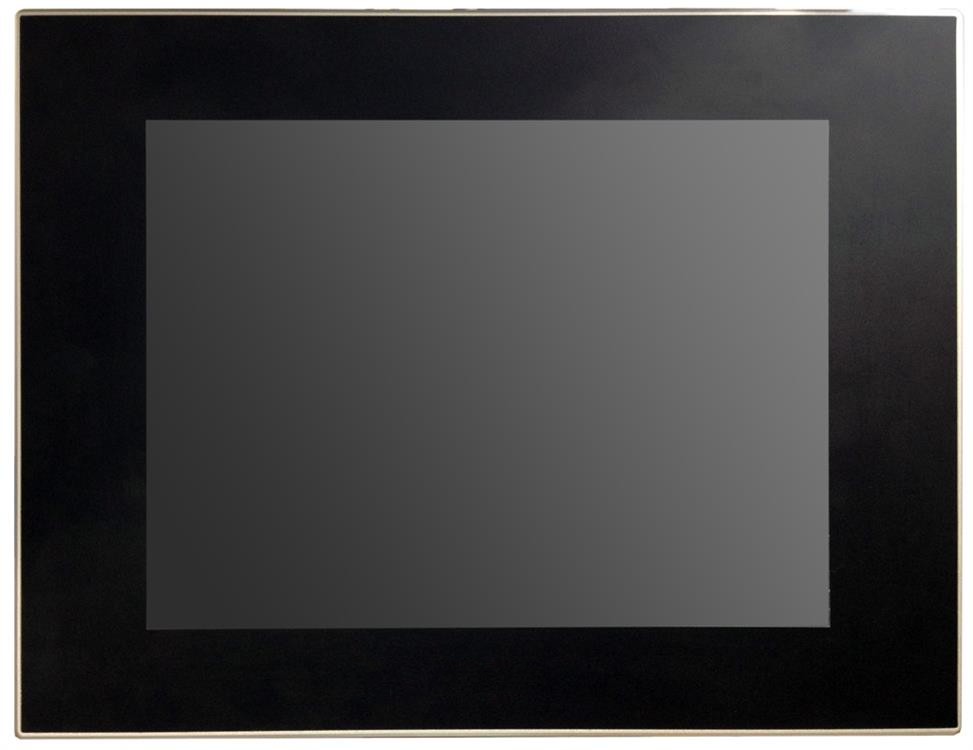

PPC-E17 Intel® Core™ i5-4300U High-Performance Fanless 17”  Panel PC

High-Performance Fanless 17” Panel PC

PPC-E17 Intel® Core™ i5-4300U

    - CPU: Intel® Core™ i5-4300U (1.9–2.9GHz, 3MB cache, 2 x cores with HyperThreading support), option: Intel® Core™ i7-4650U (1.7–3.3GHz, 4MB cache, 2 x cores);
    - Chipset: Intel® QM87 (sharing the same base with the Haswell CPU);
    - RAM: 2 – 16GB, 2 x DDR3L 1333/1600 modules, non ECC, 2-channel;
    - Screen: 17”, resolution: 1280 х 1024, with resistive touchscreen, luminance: 350 cd/m², contrast ratio: 700:1;
    - Network: 2 x Ethernet 10/100/1000 Intel® WG1210AT and Intel® WG1218LM controllers;
    - Audio: 2-channel, Realtek® HD Audio;
    - Power supply: 12-24V DC;
    - Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
    - OS compatibility: Microsoft Windows 7, Windows 8.1, Windows 10, Linux;
