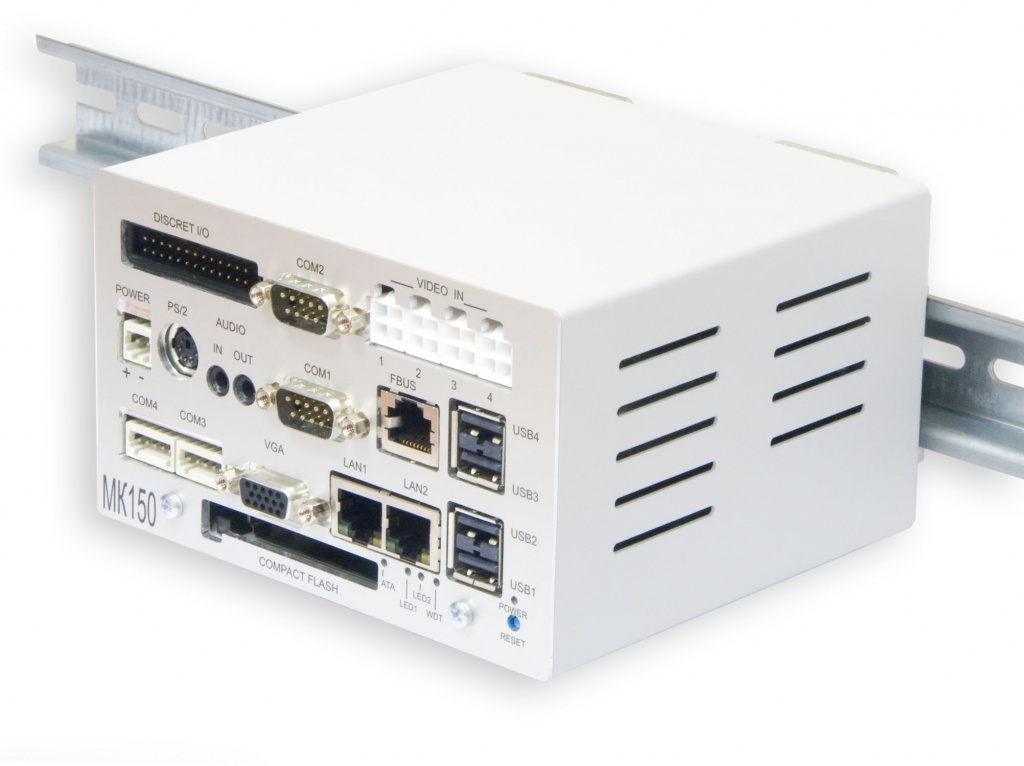

MK150

MK150 Box PC

Box PC

MK150

    •    Compliance with PICMG 2.0 specification (32 - bit / 33 MHz)
    •    AMD Geode LX 800 (500 MHz)
    •    256 MB RAM
    •    CompactFlash (Type I, II) socket
    •    1GB Internal Flash – disk
    •    VGA
    •    Two Fast Ethernet channels (10/100 Mbit)
    •    Discrete input/output: 24 channels
    •    2×RS - 232, 2×RS - 422/485
    •    FDOS, Windows XPe, Linux 2.6, QNX 6.4x, QNX 4.25
    •    Shock/vibration: 50g/100g
    •    MTBF: 130 000
    •    Operating temperature range: -40°C…+70°C

    Overview

    Downloads

    Sales & technical support

    The computer is based on MicroPC AMD GEODE LX 800, 500 MHz -  CPC150 processor module
    Four video input channels, direct connection of Fastwel I/O input/output modules
    Nonvolatile memory 128 KB
    Power voltage 18 – 36V
    MK150 has no moving parts
    Operating temperature range: -40 to +70ºС
    Mounting on a DIN-rail or panel
    Datasheet (PDF 0.26 MB)
