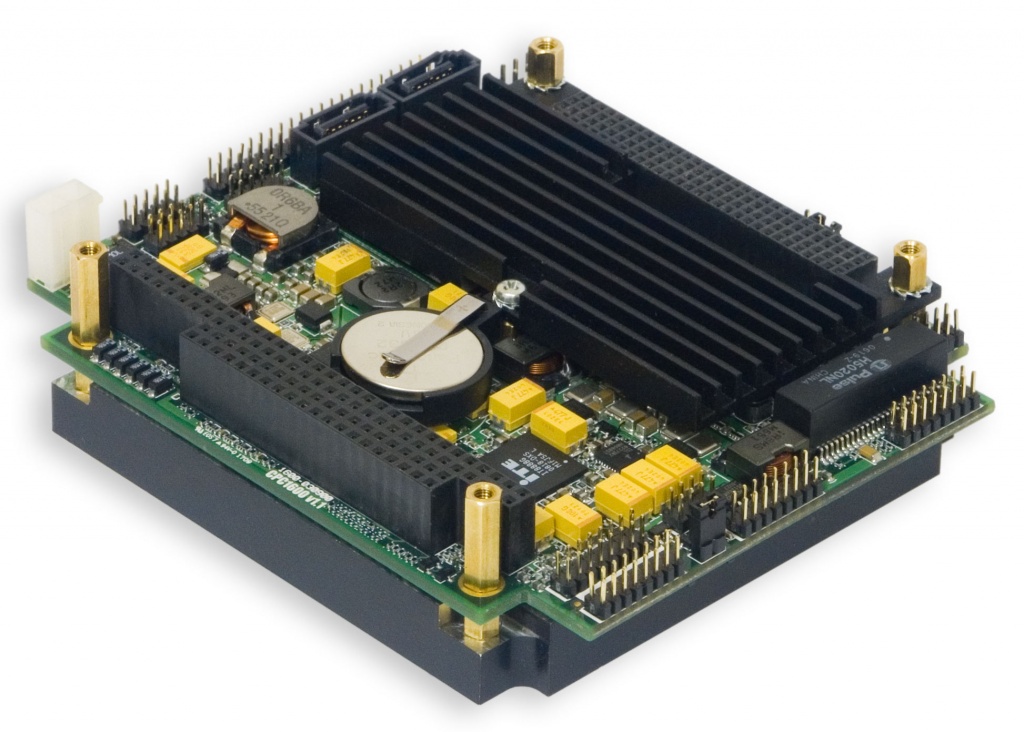

CPC1600  PC/104-Plus Intel® Pentium® M SBC (EOL)

PC/104-Plus Intel® Pentium® M SBC (EOL)

CPC1600

    •    Intel® Pentium® M processor up to 2.0 GHz and 1 GB PC4200 DDR2 DRAM soldered on board
    •    Built-in solid-state disk up to 32 MB soldered on board
    •    Six USB 2.0 ports
    •    Two Serial ATA channels
    •    Two Gigabit Ethernet ports
    •    Two independent CRT/LVDS displays
    •    PC/104 modules support
    •    Shock and vibration resistant
    •    Conduction or convection cooling
    •    Operating temperature:
    •    0°С to +70°С - commercial
    •    –40°С to +85°С - industrial

    Overview

    Downloads

    Order Info

    Sales & technical support

    СРС1600 is a РС/104-Plus single board computer designed for mission critical embedded systems. The board is based on Intel® Pentium® M processor up to 2.0 GHz, 915GM & ICH6M chipset.

    All components including memory are soldered onboard thus providing superior shock/vibration standing construction. The board also has a 32 MB solid-state disk for embedded OS. Video system supports CRT-monitors and flat panels with LVDS interface with resolution up to 2048x1536.

    Peripheral devices can be connected to СРС1600 through 6 high-speed USB 2.0 channels. Two Gigabit Ethernet channels make this board perfect for developing communication intensive applications. The board supports drives with IDE UltraATA/100, SerialATA interfaces and CompactFlash Cards.

    The board is available in conduction or convection cooling versions. Additional reliability of СРС1600 is provided by the hardware monitoring subsystem, watchdog timer and reserved CMOS memory.

    The board is available in two versions - for industrial temperature range (-40°C to +85°C) and for commercial temperature range (0°C to +70°C).

    CPC1600 EOL INFORMATION

    Datasheet (PDF 0.79 MB)
    CPC1600manual.pdf (PDF 1.44 MB)
    CPC1600-01-C1.0-RAM1024-C

    PC104+, Intel® ULV Celeron M 1.0 GHz, Intel® 82915GM/ICH6-M, 1024MB DDR2 Soldered, 2 Gb LAN, SVGA, 2 SATA, IDE Ultra ATA/100, 32 GB SSD soldered, 6 USB, 8 I/O

    CPC1600-01-C1.0-RAM1024-I

    PC104+, Intel® ULV Celeron M 1.0 GHz,, Intel® 82915GM/ICH6-M, 1024MB DDR2 Soldered, 2 Gb LAN, SVGA, 2 SATA, IDE Ultra ATA/100, 32 GB SSD soldered, 6 USB, 8 I/O, -40…+85

    CPC1600-01-C1.0-RAM512-C

    PC104+, Intel® ULV Celeron M 1.0 GHz, Intel® 82915GM/ICH6-M, 512MB DDR2 Soldered, 2 Gb LAN, SVGA, 2 SATA, IDE Ultra ATA/100, 32 MB SSD soldered, 6 USB, 8 I/O

    CPC1600-01-C1.0-RAM512-I

    PC104+, Intel® ULV Celeron M 1.0 GHz, Intel® 82915GM/ICH6-M, 512MB DDR2 Soldered, 2 Gb LAN, SVGA, 2 SATA, IDE Ultra ATA/100, 32 MB SSD soldered, 6 USB, 8 I/O Trange: -40...+85C

    CPC1600-01-P1.4-RAM1024-C

    PC104+, Intel® Pentium® M 1.4 GHz, Intel® 82915GM/ICH6-M, 1024MB DDR2 Soldered, 2 Gb LAN, SVGA, 2 SATA, IDE Ultra ATA/100, 32 GB SSD soldered, 6 USB, 8 I/O

    CPC1600-01-P1.4-RAM1024-I

    PC104+, Intel® Pentium® M 1.4 GHz, Intel® 82915GM/ICH6-M, 1024MB DDR2 Soldered, 2 Gb LAN, SVGA, 2 SATA, IDE Ultra ATA/100, 32 GB SSD soldered, 6 USB, 8 I/O, -40…+85

    CPC1600-01-P1.8-RAM1024-C

    PC104+, Intel® Pentium® M 1.8 GHz, 82915GM/ICH6-M, 1024MB DDR2 Soldered, 2 Gb LAN, SVGA, 2 SATA, IDE Ultra ATA/100, 32 GB SSD soldered, 6 USB, 8 I/O

    CPC1600-01-P1.8-RAM1024-I

    PC104+, Intel® Pentium® M 1.8 GHz Intel® 82915GM/ICH6-M, 1024MB DDR2 Soldered, 2 Gb LAN, SVGA, 2 SATA, IDE Ultra ATA/100, 32 GB SSD soldered, 6 USB, 8 I/O, -40…+85

    CPC1600-01-P2.0-RAM1024-C

    PC104+, Intel® Pentium® M 2.0 GHz, Intel® 82915GM/ICH6-M, 1024MB DDR2 Soldered, 2 Gb LAN, SVGA, 2 SATA, IDE Ultra ATA/100, 32 GB SSD soldered, 6 USB, 8 I/O
