CPC502 3U CompactPCI Pentium® M SBC (EOL)

3U CompactPCI Pentium® M SBC (EOL)

CPC502

    •    Intel® Pentium® M processor up to 1.8 GHz
    •    SDRAM and flash disk soldered onboard
    •    Two Gigabit Ethernet ports on internal PCI-X bus
    •    Two USB 2.0 ports
    •    Two SATA interfaces
    •    Stand-alone operation without backplane
    •    Smart temperature control
    •    Wide range of mezzanine and rear I/O modules
    •    Operating temperature:
    •    0°C to +70°C - commercial
    •    -40°C to +85°C - industrial

    Overview

    Downloads

    Order Info

    Sales & technical support

    This card is especially designed for industrial automation, instrumentation, medical, telecommunications and other mission critical applications.

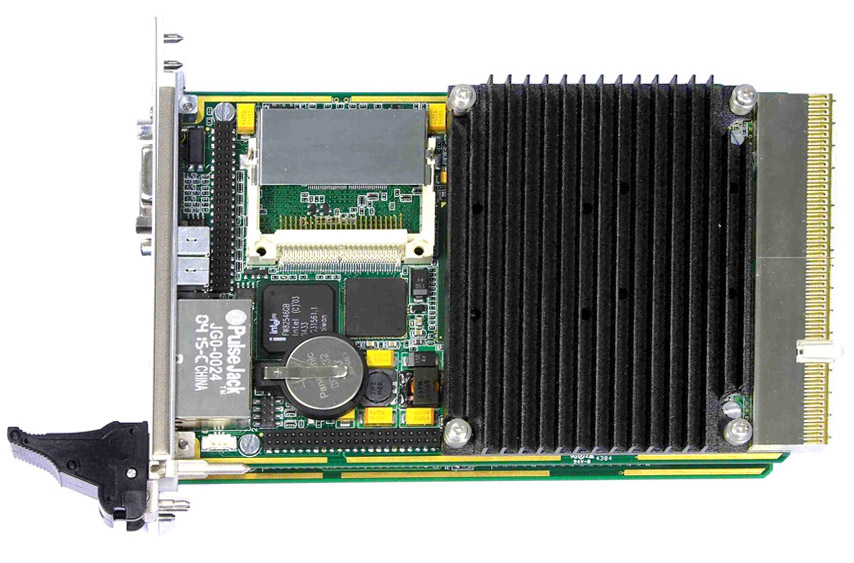

    CPC502 is based on Intel® Pentium® M processor up to 1.8 GHz and has up to 1GB of RAM. Newest set of Intel 855GME/Hance Rapid ICH system logic guarantees unique performance of the card.

    Two Gigabit Ethernet ports working through 66 MHz PCI-X local bus make this card ideally adapted for use in communication intensive applications.

    CPU card has both SDRAM and solid-state disk soldered onboard. It allows systems to operate without any moving parts thus providing better shock/vibration resistance.

    All mezzanine cards can be left or right mounted.

    ATX power connector on mezzanine board allows 8HP system to be used as a fullfunctioning stand-alone "computing brick" without any backplane.

    Smart temperature control system provides intelligent control of fan speed (if used), CPU clock and core voltage to achieve optimal thermal conditions for CPU card.

    There is 32K nonvolatile RAM where user application can save critical data if power fails. CPC502 also has 64K EEPROM memory for user applications.

    Opto-isolated Reset port can be used in distributed or redundant systems to receive Reset signal from remote location.
    Datasheet (PDF 1.86 MB)
    CPC502-UM-002-Epdf.pdf (PDF 4.26 MB)
    CPC502-01-C1.0-RAM1024-C-A1

    CompactPCI CPU card 3U/4HP. Celeron M 1 GHz. 1024MB DDR SDRAM. 2xGigabit Ethernet. QXGA. LVDS TFT. Audio. 2xSerialATA. 32 MB FFD. 6xUSB 2.0. 4xCOM. PXI 0..70'C

    CPC502-01-C1.0-RAM512-C-A1

    CompactPCI CPU card 3U/4HP. Celeron M 1 GHz. 512MB DDR SDRAM. 2xGigabit Ethernet. QXGA. LVDS TFT. Audio. 2xSerialATA. 32 MB FFD. 6xUSB 2.0. 4xCOM. 0..70'C

    CPC502-01-P1.4-RAM1024-C-A1

    CompactPCI CPU card 3U/4HP. Pentium M 1.4 GHz. 1024MB DDR SDRAM. 2xGigabit Ethernet. QXGA. LVDS TFT. Audio. 2xSerialATA. 32 MB FFD. up to 6xUSB, 4xCOM 0..70'C

    CPC502-01-P1.4-RAM1024-I-A1

    CompactPCI CPU card 3U/4HP. Pentium M 1.4 GHz. 1024MB DDR SDRAM. 2xGigabit Ethernet. QXGA. LVDS TFT. Audio. 2xSerialATA. 32 MB FFD. 6xUSB 2.0. 4xCOM. PXI -40..+85'C

    CPC502-01-P1.4-RAM512-C-A1

    CompactPCI CPU card 3U/4HP. Pentium M 1.4 GHz. 512MB DDR SDRAM. 2xGigabit Ethernet. QXGA. LVDS TFT. Audio. 2xSerialATA. 32 MB FFD. 6xUSB 2.0. 4xCOM. PXI 0..70'C

    CPC502-01-P1.4-RAM512-I-A1

    CompactPCI CPU card 3U/4HP. Pentium M 1.4 GHz. 512MB DDR SDRAM. 2xGigabit Ethernet. QXGA. LVDS TFT. Audio. 2xSerialATA. 32 MB FFD. 6xUSB 2.0. 4xCOM. PXI -40..+85'C

    CPC502-01-P1.8-RAM1024-C-A1

    CompactPCI CPU card 3U/4HP. Pentium M 1.8 GHz. 1024MB DDR SDRAM. 2xGigabit Ethernet. QXGA. LVDS TFT. Audio. 2xSerialATA. 32 MB FFD. 6xUSB 2.0. 4xCOM. PXI 0..70'C

    CPC502-01-P1.8-RAM1024-I-A1

    CompactPCI CPU card 3U/4HP. Pentium M 1.8 GHz. 1024MB DDR SDRAM. 2xGigabit Ethernet. QXGA. LVDS TFT. Audio. 2xSerialATA. 32 MB FFD. 6xUSB 2.0. 4xCOM.-40..+85'C

    MIC58001-C-A1

    3U/4HP Mezzanine interface card for CPC502. 2xUSB 2.0. 2xRS232. LPT. PS/2. HDD. FDD. SATA interfaces. Audio Line In/Out. Space for 2.5" HDD. Auxiliary External ATX power. 0..70'C

    MIC58001-C-A1

    3U/4HP Mezzanine interface card for CPC502. 2xUSB 2.0. 2xRS232. LPT. PS/2. HDD. FDD. SATA interfaces. Audio Line In/Out. Space for 2.5" HDD. Auxiliary External ATX power. 0..70'C

    MIC58001-I-A1

    3U/4HP Mezzanine interface card for CPC502. 2xUSB 2.0. 2xRS232. LPT. PS/2. HDD. FDD. SATA interfaces. Audio Line In/Out. Space for 2.5" HDD. Auxiliary External ATX power. -40..85'C

    MIC58001-I-A1

    3U/4HP Mezzanine interface card for CPC502. 2xUSB 2.0. 2xRS232. LPT. PS/2. HDD. FDD. SATA interfaces. Audio Line In/Out. Space for 2.5" HDD. Auxiliary External ATX power. -40..85'C

    RIO58201-C

    3U/4HP Rear I/O board for CPC502. 1 opto-isolated RS232 port. 2xUSB 2.0. VGA. SATA interfaces. Additional RTC battery. 0..70'C

    RIO58201-I

    3U/4HP Rear I/O board for CPC502. 1 opto-isolated RS232 port. 2xUSB 2.0. VGA. SATA interfaces. Additional RTC battery. -40..+85'C

    RIO58201-I

    3U/4HP Rear I/O board for CPC502. 1 opto-isolated RS232 port. 2xUSB 2.0. VGA. SATA interfaces. Additional RTC battery. -40..+85'C
