CPC800

CPC800 EPIC Intel® Pentium® M SBC (EOL)

EPIC Intel® Pentium® M SBC (EOL)

CPC800

    •    Intel® Pentium® M processor up to 1.8 GHz
    •    Up to 1 GB DDR SDRAM ECC soldered onboard
    •    Two Gigabit Ethernet ports
    •    Four USB 2.0 ports
    •    Two SerialATA channels
    •    PC/104-Plus modules support
    •    Protective coating (optional)
    •    50G/5G - shock/vibration resistance
    •    Operating temperature:
    •    0°C to +70°C - commercial
    •    -40°C to +85°C - industrial

    Overview

    Downloads

    Order Info

    Sales & technical support

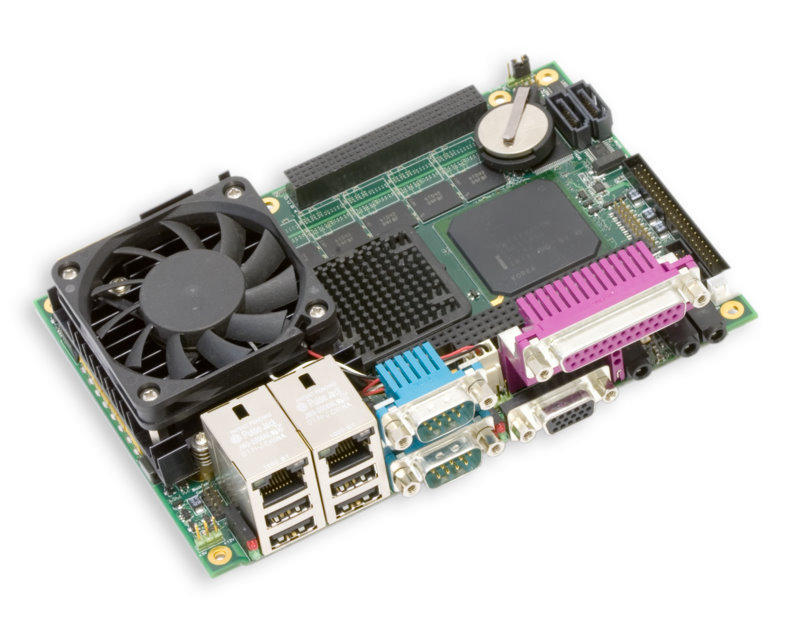

    CPC800 is a compact single board computer in EPIC form-factor. The board is based on Intel® Pentium® M processor up to 1.8 GHz and up to 1 GB of DDR SDRAM.

    All components including CPU, SDRAM and 32 MB solid-state disk are soldered onboard thus providing superior shock/vibration resistance.

    For demanding applications there is a CompactFlash socket for cards of up to 16 GB.

    Two Gigabit Ethernet ports make CPC800 an ideal platform for robust redundant systems. Very compact size of CPC800 – 115 x 165 mm - combines with full set of functions including video and audio controllers. New modification - CPC800-02 is providing additional LVDS interface for flat panels and capable to deliver two independent graphical streams for VGA and LVDS interfaces.

    Onboard 32K nonvolatile RAM allows users to save critical data in case power fails. CPC800 also has 64K EEPROM memory for user applications.

    One of the board's benefits is a PC/104 Plus connector with PCI and ISA interfaces, that allows Fastwel CPC800 and PC/104 modules work together as an integral system.

    The board can withstand shock up to 50g and vibration up to 5g in 3 directions with working temperatures from -40°C to +85°C.

    CPC800 EOL INFORMATION

    Datasheet (PDF 1.38 MB)
    cpc800manual.pdf (PDF 1.61 MB)
    CPC800-02-C1.0-RAM512-C

    EPIC SBC. Celeron M 1.0 GHz. Intel 855GME. 512 MB DDR SDRAM. FFD 32 MB. SVGA. LVDS 2xGigabit LAN. SATA. PC/104. PC/104 Plus. 0°C ... +70°C

    CPC800-02-C1.0-RAM512-I

    EPIC SBC. Celeron M 1.0 GHz. Intel 855GME. 512 MB DDR SDRAM. FFD 32 MB. SVGA. LVDS 2xGigabit LAN. SATA. PC/104. PC/104 Plus. -40°C ... +85°C

    CPC800-02-P1.4-RAM1024-C

    EPIC SBC. Pentium M 1.4 GHz. Intel 855GME. 1024 Мб DDR SDRAM. FFD 32 MB. SVGA. LVDS. 2xGigabit LAN. SATA. PC/104. PC/104 Plus. 0°C ... +70°C

    CPC800-02-P1.4-RAM1024-I

    EPIC SBC. Pentium M 1.4 GHz. Intel 855GME. 1024 МB DDR SDRAM. FFD 32 MB. SVGA. LVDS. 2xGigabit LAN. SATA. PC/104. PC/104 Plus. -40°C ... +85°C

    CPC800-02-P1.4-RAM512-C

    EPIC SBC. Pentium M 1.4 GHz. Intel 855GME. 512 МB DDR SDRAM. FFD 32 MB. SVGA. LVDS. 2xGigabit LAN. SATA. PC/104. PC/104 Plus. 0°C ... +70°C

    CPC800-02-P1.8-RAM1024-C

    EPIC SBC. Pentium M 1.8 GHz. Intel 855GME. 1024 МB DDR SDRAM. FFD 32 MB. SVGA. LVDS. 2xGigabit LAN. SATA. PC/104. PC/104 Plus. 0°C ... +70°C

    CPC800-02-P1.8-RAM1024-I

    EPIC SBC. Pentium M 1.8 GHz. Intel 855GME. 1024 МB DDR SDRAM. FFD 32 MB. SVGA. LVDS. 2xGigabit LAN. SATA. PC/104. PC/104 Plus. -40°C ... +85°C
