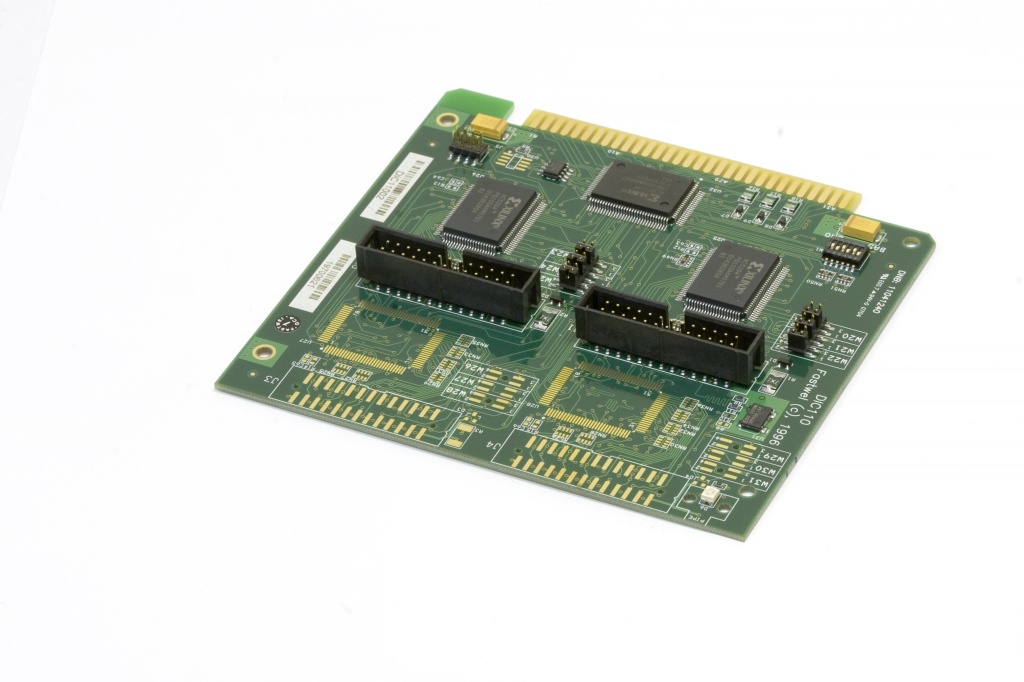

DIC110 (UNIOxx-5)

DIC110 (UNIOxx-5) Programmable I/O card (EOL)

Programmable I/O card (EOL)

DIC110 (UNIOxx-5)

    •    96/48 digital/frequency I/O channels programmable in any combination
    •    Compatibility with digital/analog opto-isolated modules Opto-22, Grayhill (including 73G, 73L)
    •    Frequency, phase measurement at any channel
    •    Timers/counters
    •    Frequency generation and pulse width modulation (PWM) at any channel
    •    Code conversion at any channel
    •    Timing diagrams generation
    •    Input event interrupts generation
    •    Programmable debounce logic
    •    In-System Programming
    •    Extended operating temperature range from -40°C to +85 °C

    Overview

    Downloads

    Order Info

    Sales & technical support

    The UNIO96/48-5 are 96/48-channel digital I/O MicroPC add-on cards.

    The cards deal with the TTL-level signals and can be used to interface with optoisolated modules racks, displays, LEDdevices.

    The card provides a wide range of functions - counting, sequencing, timing diagrams generation, pulse width modulation, code conversion etc.

    The module uses FPGA chips for signal processing. It supports in-system programming which allows to change the control logic algorithm without turning power off.

    DIC110 EOL INFORMATION

    Datasheet (PDF 0.89 MB)
    DIC11001

    UNIO96-5 multifunctional I/O Card MicroPC, 96 lines

    DIC11002

    UNIO48-5 multifunctional I/O Card MicroPC, 48 lines
