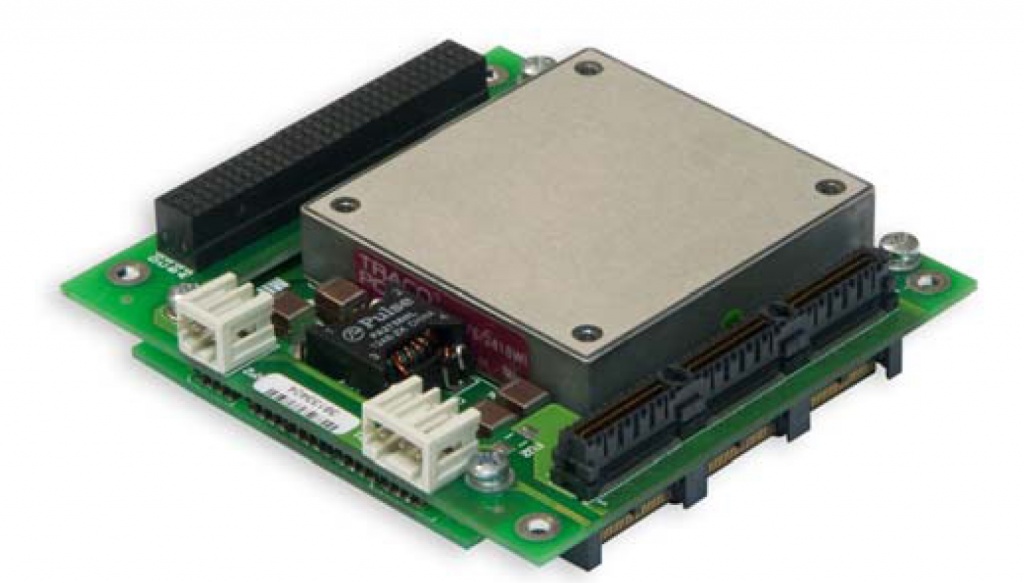

StackPC-PCI Power Supply Module

PS352

•    StackPC-PCI form-factor;
•    Input voltage: 9–36 V; Output voltage: 48 V ± 5%;
•    Module’s power supply without load: 2.4 W;
•    Maximum output power: 75 W;
•    Galvanic isolation input/output: 1500 V;
•    Overload and overheating protection;
•    Operating temperature range: from –40°С to + 85°С
•    (with the reduction of output power)
•    Vibration resistance:5g, Single shock resistance: 100g,
•    Multiple shock resistance: 50g;
•    MTBF: 500 000;
•    Dimensions, no more than: 969122.5 mm;
•    Weight: no more than 185 g.

Overview Downloads Order Info Sales & technical support

This Power Supply Module is implemented in StackPC-PCI form-factor. The device is optimally suited for distributed supply systems based on the technology of power supply transfer via Ethernet - PoE (Power over Ethernet) networks, made for operation in harsh environments.

Datasheet (PDF 0.22 MB)

UM_PS352__v1.4_.pdf (PDF 0.77 MB)

PS352 - 01

StackPC-PCI form-factor, input voltage: 9–36 V, output voltage: 48 V ± 5%, maximum output power: 75 W, galvanic isolations input/output: 1500 V, overload and overheating protection, installed StackPC and PCI connectors

PS352 - 02

Options

\Conformal coating is available for all module versions
