Preliminary CPC520 CPCI PICMG 2.30 AMD Ryzen Based CPU Module CPC520

CPCI PICMG 2.30 AMD Ryzen Based CPU Module CPC520

Preliminary CPC520

    • Processor: AMD Ryzen Embedded (series V1000 or R1000) SOC APU;
    • RAM: DDR4 SDRAM 1600 MHz, 8 GB, x64, ECC;
    • FLASH BIOS: 8 MB SPI-Flash;
    • SSD SATA Flash disk: 16 GB (SLC NAND Flash);
    • Dimensions: No more than: 130.5 × 213.0 х 20.32 mm;
    • Power supply voltage: + 5 V ± 5%;
    • Software compatibility: Linux, QNX, Microsoft Windows Embedded Standard 7, Microsoft Windows 10;
    • MTBF: 100,000 hours;

    Overview

    Downloads

    Order Info

    Sales & technical support

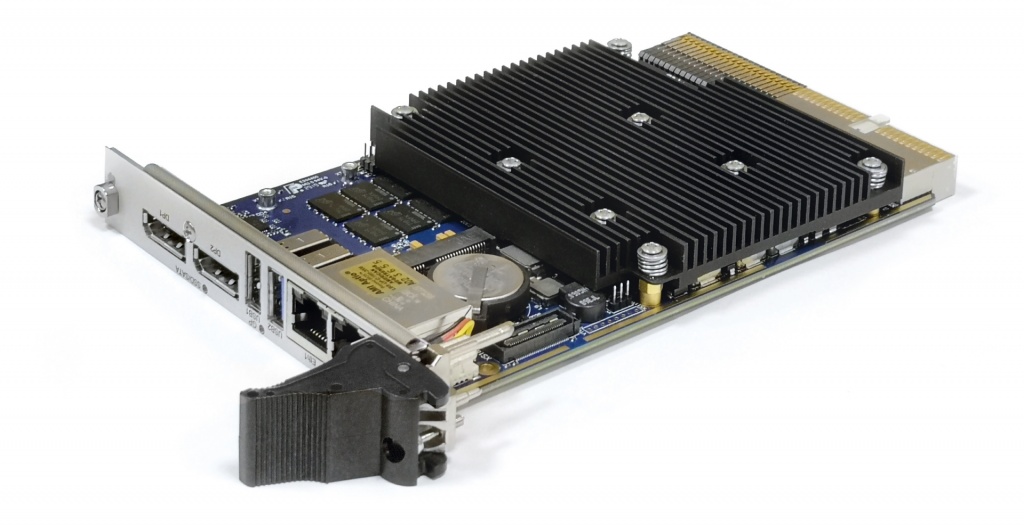

    CPC520 CPU Module in the 3U CompactPCI Plus IO (PICMG 2.30) is used for high-performance computing and ensures high-speed information exchange.
    Datasheet (PDF 0.76 MB)
    CPС520-01

    CPU Module, 8GB RAM, AMD Ryzen Embedded V1000 Series (Quad Core);

    CPС520-02

    CPU Module, 4GB RAM, AMD Ryzen Embedded R1000 Series (Dual Core);
