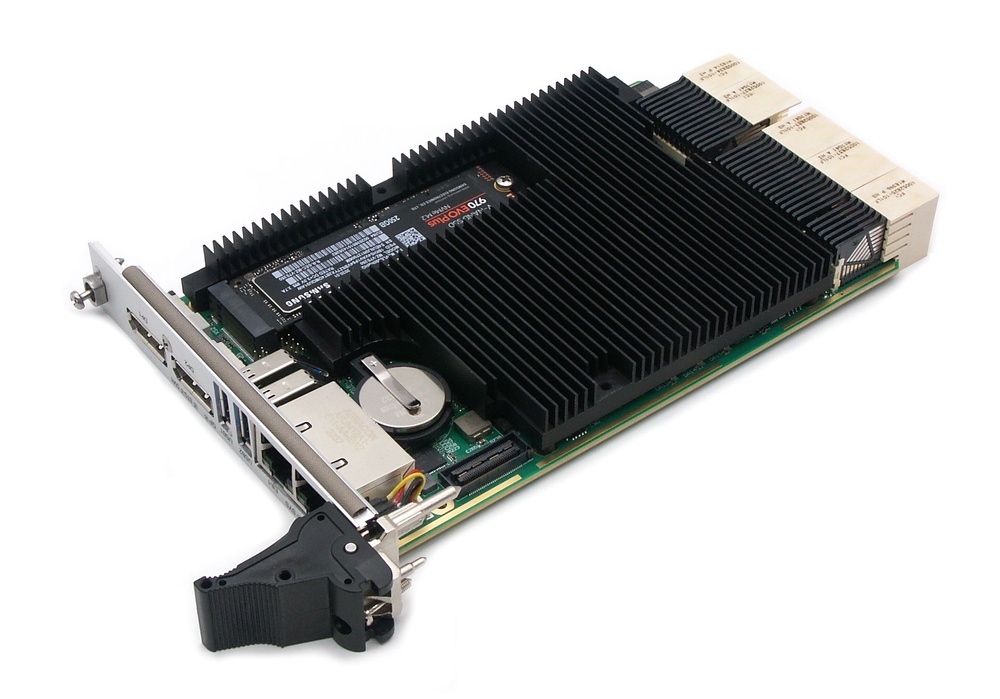

CPC522 3U Compact PCI Serial Intel Xeon/ Core i3 based CPU Module

3U Compact PCI Serial Intel Xeon/ Core i3 based CPU Module

CPC522

    - CPU Intel Xeon E-2276ME 2.0GHz (35W)/E-2276ML(25W)(v.01);
    - CPU Core i3-9100HL 1.6 GHz (for versions -02, -03, -04);
    - RAM: DDR4-2666 SDRAM, up to 16 GB, with ЕСС support;
    - Integrated GPU Intel® UHD Graphics P630;
    - Resistance to sinusoidal vibration from 10 to 150 Hz, multiple
      shocks: 25 g, single shocks: 50 g;
    - Integrated SATA SSD: 32 GB 3D NAND Flash;
    - Operating temperature range: 0 to + 70°С (for -01; -02; -03) and
      -40 to +85°С (for -04);
    - Internal watchdog, with program control capability;
    - MTBF: no less than 100,000 hours.

    Overview

    Downloads

    Order Info

    Sales & technical support

    The CPC522 CPU Module is implemented in the 3U CompactPCI Serial standard format and provides developers with a highly integrated solution on the x86 platform in 3U CPCI format for the use in real-time systems, production control, highspeed data acquisition and processing. Along with support of all the basic functionalities of the CPC512 module, CPC 522 has a number of additional functions: increased RAM capacity, integrated high-speed solid-state drive and network controllers supporting the rates up to 2.5 Gb/s.
    Datasheet (PDF 0.34 MB)
    CPC522-01

    3U CPCI Serial Module, height:4HP,implemented in the 3U Eurocard standard format, with 6-core CPU Xeon E-2276ML 2.0GHz,12MB Cache, 6xCores 12xthreads 25W, 16GB RAM, SSD 32GB with a low heatsink for operation in the commercial temperature range (0..+70°C)

    CPC522-02

    3U CPCI Serial Module, height 4HP,implemented in the 3U Eurocard standard format,with 4-core CPU Core i3-9100HL 1.6GHz,6MB Cache,4 x Cores 4 x threads 25W, 16GB RAM, SSD 32GB with a low heatsink for operation in the commercial temperature range (0..+70°C)

    CPC522-03

    3U CPCI Serial Module, height:4HP, implemented in the 3U Eurocard standard format,with 4-core CPU Core i3-9100HL 1.6GHz, 6MB Cache, 4 Cores 4 x threads 25W, 16GB RAM, no SSD, with a low heatsink for operation in the commercial temperature range (0..+70°C)

    CPC522-04

    3U CPCI Serial Module, height:8HP,implemented in the 3U Eurocard standard format,with 4-core CPU Core i3-9100HL 1.6GHz, 6MB Cache, 4xCores4xthreads 25W, 16GB RAM, SSD 32GB with a high heatsink for operation in the industrial temperature range (-40..+85°C)
