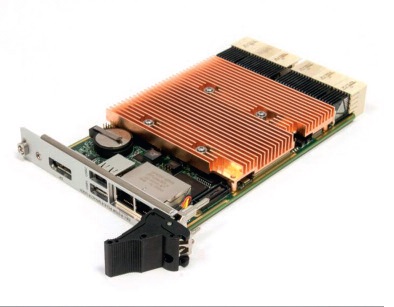

3U CPCI Serial Elbrus CPU Module

CPC514

VLIW-based CPU of Elbrus architecture (up to 800 MHz)
DDR3 SDRAM 1600 MHz with ЕСС support 8 GB, soldered, 2x channel
Flash BIOS: 64 Mb SPI-Flash
USB 2.0 ports: 2x ports are routed to the front panel connectors,
7x ports are routed to J3 CPCI Serial connector
Humidity: up to 80%, no condensation; up to 98%,
no condensation, for /Coated option
Operating temperature range: from –40 to + 85°C
Software compatibility: Elbrus OS; KPDA. 10964-01 OS
MTBF: no less than 80 000 h

Overview Downloads Order Info Sales & technical support

CPC514 CPU Module is made in CPCI Serial 3U form-factor and is a highly integrated solution based on the Elbrus
domestic platform. CPC514 is designed for the use in realtime systems, manufacturing control systems and other systems for data acquisition and processing, which are used in harsh environments and require high reliability, information security and flexibility while supporting various extension interfaces.

Datasheet (PDF 0.87 MB)

UM CPC514__.pdf (PDF 1.67 MB)

CPС514-01

CPCI Serial 3U/4HP module with four core CPU 600 MHZ, 8 GB RAM, or operation in the industrial temperature range

CPС512RC-01

CPCI Serial 3U/5HP module, with four core CPU 600 MHz, 8 GB RAM, with conduction cooling

\Coated

Conformal coating
