Large Capacity Cost-Efficient Data Storage System

DS-4024-A4 (Advantix - powered by Fastwel)

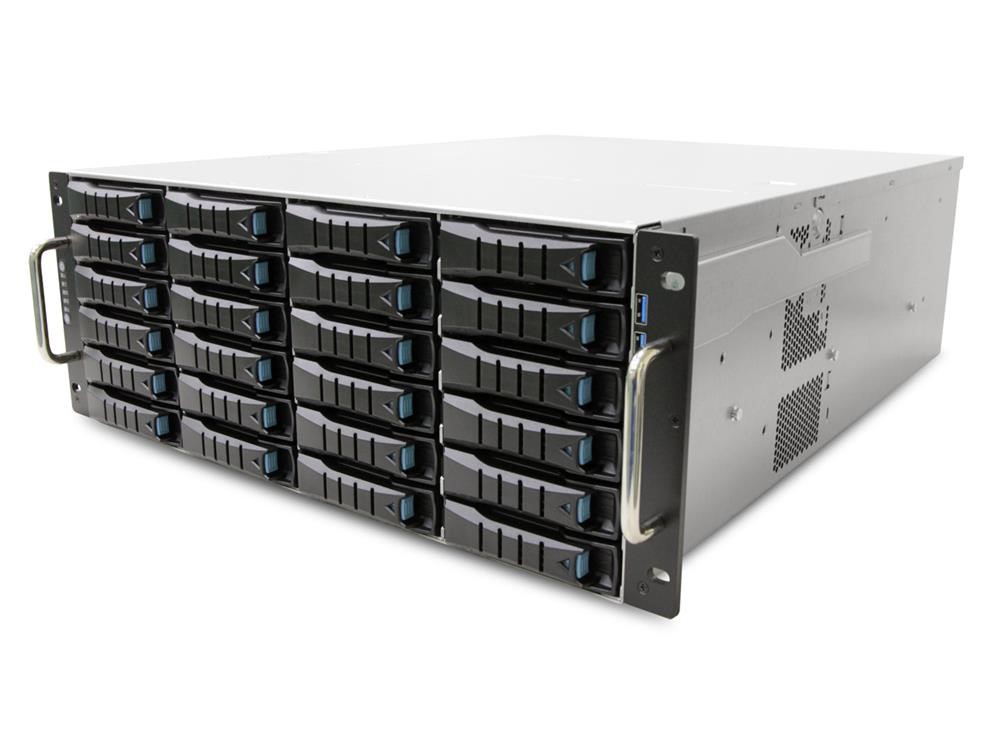

DS-4024-A4 (Advantix - powered by Fastwel) Large Capacity Cost-Efficient Data Storage System

- CPU: Intel® Xeon® E3-1200V5;
- RAM: Up to 64 GB DD4 ECC;
- Operating temperature range: +5°C ~ +40°C;
- Power supply: 700 W with redundancy (1+1) 80+ Platinum;
- Maximum disk space volume: up to 336 TB (with the use of 14
  TB drives);
- Maximum number of drives: Up to 24 x 3.5” (12 Gb/s SAS/
  SATA; 7200 rev. per minute);
- Weight: 45 kg (max);
- Dimensions: 560 (L) х 483 (W) х 176 (H);
- OS compatibility: in the preinstalled form to SATADOM: RAIDIX,
  Windows Storage Server, Astra Linux / Astra Linux Special
  Edition;

DS-4024-A4 (Advantix – powered by Fastwel) is an average capacity data storage system designed for the use as a network attached storage (NAS) or costefficient storage area networks (SAN). The system can store up to 24 x 3,5” drives with a total volume of up to 336 TB with the use of 14 TB drives. The system’s outstanding feature is its short length – 560 mm, which makes it possible to be installed into narrow racks (600mm) and a possibility to install fullheight expansion boards (graphics card, I/O board). This enables to use it in video surveillance solutions. The standard connection interface – two Gigabit Ethernet ports. Additionally - 10 / 40 Gb/s Ethernet, 16 Gb/s Fiber Channel, as well as 12 GB/s SAS.
Datasheet (PDF 0.24 MB)
Manuals:
  • DS-4024-A4

    Large Capacity Cost-Efficient Data Storage System / Intel® Xeon® E3-1200V5 / Up to 64 GB DD4 ECC / Up to 24 x 3.5” / Redundant PSU 700 W (1+1), 80+ Platinum
