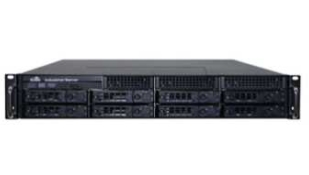

Xeon-Е3 High-Performance Server

GS-208C-E1

- Processor: 1xLGA 1151; Intel® Xeon® E3-1200 v5;
- Chipset: Intel® C236 PCH;
- Expansion slots: 4 x Low profile slots;
- RAM: 4 x DDR4 DIMM (288 pin) slots; up to 64GB ECC UDIMM;
- Disk subsystem: disk subsystem: 8 х 3,5” disks with Hot Swap) /
  option 2 х 2,5”;
- Video subsystem: integrated display controller
  Aspeed AST2300 32MB VRAM;
- Operating temperature range: 5ºС~40ºС;
- Dimensions (mm): 660 (D) * 440 (W) * 89 (H);
- Software compatibility: Windows Server 2008R2 / 2012 /
  2012R2 / 2016 / 2019 / 2022; Windows 7 / 8 / 8.1/ 10.

Overview Downloads Order Info Sales & technical support

Single-processor high-performance server in 2U design is based on the Intel® Xeon® E3-1200v5 (Skylake) multi-core processors. The disk subsystem enables up to 8 x
3.5” and up to 2 x 2.5” (without Hot Swap) SATA 6GBs / SAS 12GBs disks. A redundant, hot-swappable power supply unit is used to improve fault tolerance. A remote management (IPMI 2.0) via a dedicated Ethernet port is supported.

Datasheet (PDF 0.2 MB)

GS-208C-E1-01

Processor: 1xLGA 1151; Intel® Xeon® E3-1200 v5, Chipset: Intel® C236 PCH, RAM: 4 x DDR4 DIMM (288 pin) slots, up to 64GB ECC UDIMM, 4 x Low profile expansion slots, video subsystem - integrated display controller Aspeed AST2300 32MB VRAM, operating temper
