Interface Module

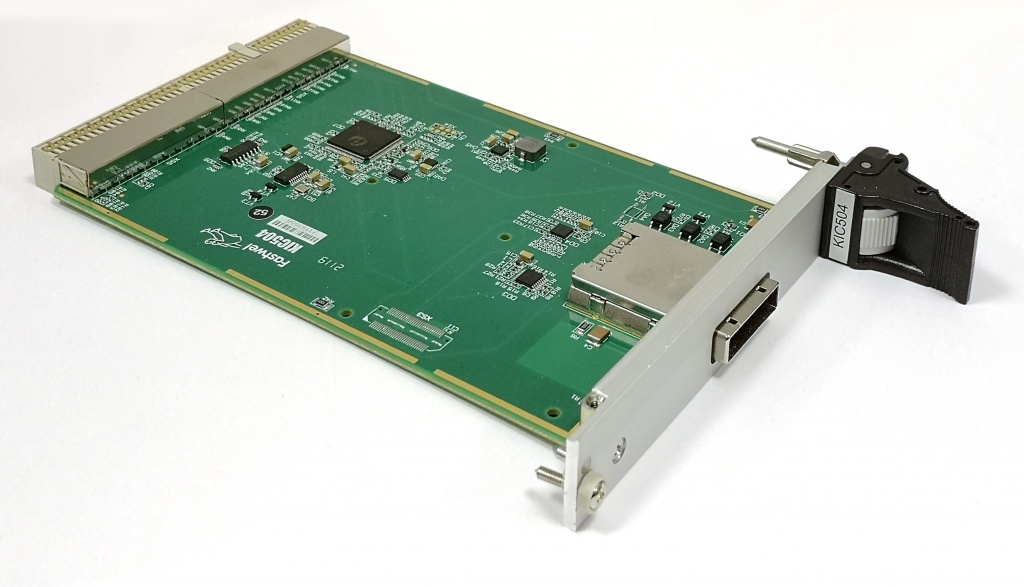

KIC504 Interface Module

  • CompactPCI: PCI Bus 32 bit 33/66 MHz;
  • Power supply voltage: +3.3 V ± 5%; +5 V ± 5%;
  • Temperature range: from -40 to +85°C;
  • Dimensions: no more than 131.0 mm × 214.0 mm х 21 mm;
  • Moisture: up to 80% at the temperature of 25 ˚С, non-condensing; up to 95% at the temperature of 25 ˚С for the /COATED option;
  • Weight: no more than 0.6 kg;
  • MTBF: no less than 500,000 hours;

The KIC504 Interface Module is a PCI Express – PCI bridge and is installed into the Compact PCI 3U/6U processor slot of the system. Connection to the CompactPCI Serial system is performed using the KIC502 module. There are two connection options: cable and mezzanine connector.

For PCI Express control signals, optical isolation is carried out in accordance with the PCI Express External Cabling standard.
