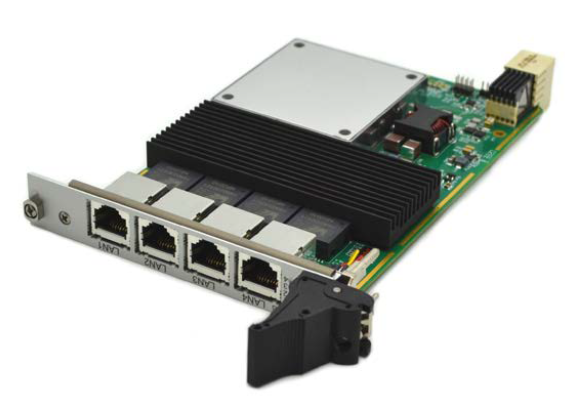

3U CompactPCI Serial 4 x Gigabit Ethernet Interface Module

NIM552

- Form-factor: CompactPCI Serial 3U/4HP;
- System bus: PCIe x4 Gen2;
- LED indication of network connections;
- Power supply: power supply voltage: 12V +/- 10%;
- Weight: 250 g max for NIM552-01 / NIM552-03 and 350 g
max for NIM552-02 / NIM552-04;
- Operating temperature range: from -40 to +85°С;
- Overall dimensions: max (130.6 ± 0.4) × (212.4 ± 1.6) ×
(21.3 ± 0.5) mm;
- Software compatibility: Windows 10, Linux Debian 10;
- MTBF: Min. 200,000 hours.

Overview Downloads Order Info Sales & technical support

The NIM552 module is based on the CompactPCI Serial 3U/4HP form-factor and implements 4 x Gigabit Ethernet interfaces, routed to the front panel via the RJ45 or M12-X connectors. The interfaces are arranged by the Intel® Ethernet Controller i350. NIM552 versions with PoE (Power over Ethernet) support are available.

Datasheet (PDF 0.29 MB)

NIM552-01

3U CompactPCI Serial 4 x Gigabit Ethernet Interface Module, 4 x RJ-45 connectors (Ethernet 10/100/1000BASE-T), conformal coating\Coated

NIM552-02

3U CompactPCI Serial 4 x Gigabit Ethernet Interface Module, 4 x RJ-45 connectors (Ethernet 10/100/1000BASE-T). PoE support (PSE Type 2, total output power no more than 55 W), conformal coating\Coated

NIM552-03

3U CompactPCI Serial 4 x Gigabit Ethernet Interface Module, 4 x M12-X connectors (Ethernet 10/100/1000BASET), conformal coating\Coated

NIM552-04

3U CompactPCI Serial 4 x Gigabit Ethernet Interface Module, 4 x M12-X connectors (Ethernet 10/100/1000BASE-T). PoE support (PSE Type 2, total output power no more than 55 W), conformal coating\Coated
