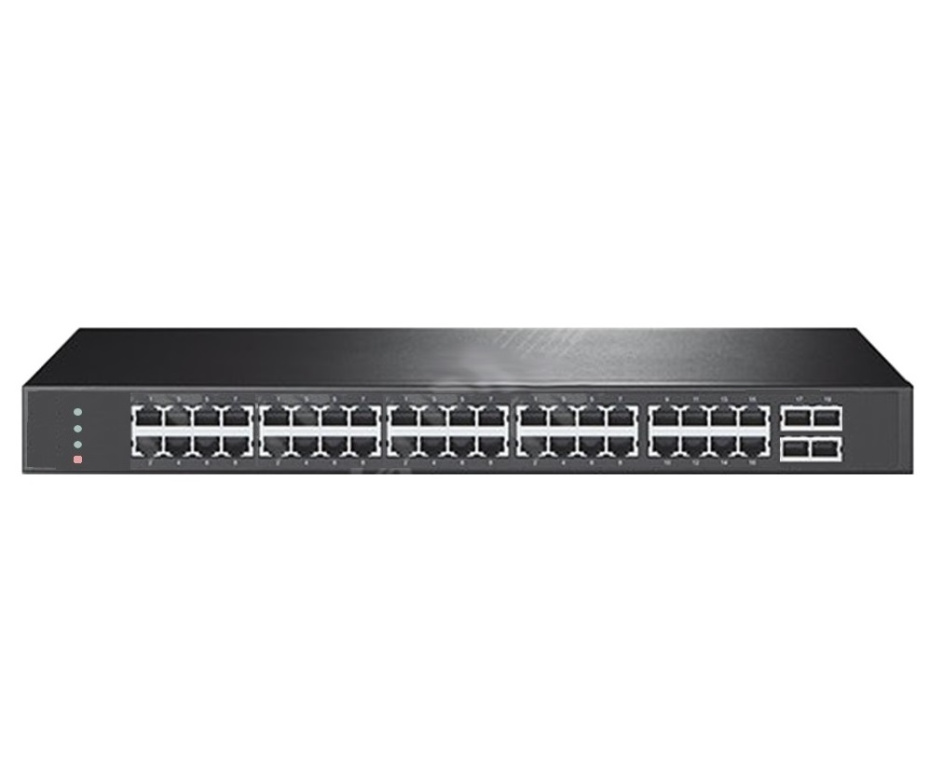

Industrial Gigabit PoE Network Managed Switch

NM801

- Ext. I/Fs: 10/100/1000Base-T 40 ports, 10Gbps SFP+ 4
  ports;
- Network standards: IEEE 802.3, 802.3i, 802.3u, 802.3z,
  802.3ab;
- Support of QoS mechanisms;
- Port Mirroring support;
- Input power supply: NM801-01 - AC voltage ~220V,
  NM801-02 - DC 36V…72V;
- Mounting requirements: 19” rack mounting, 1U height,
  with protection IP30;
- Power consumption: no more than 50W;
- Operating temperature range: from - 40° C to + 55° C;
- MTBF: No less than 100,000 hours;

Overview Downloads Order Info Sales & technical support

The NM801 Industrial Gigabit PoE Network Managed Switch is designed for integration into industrial networks for various purposes and provides a total bandwidth of up to 80Gb. Ample configuration capabilities of the switch make it possible for you to solve a wide range of tasks: from connecting 1 GbE video cameras with PoE support to aggregating communication lines and using an optical channel up to 10 GbE.

Datasheet (PDF 0.19 MB)

NM801-01 (44 ports)

40x ports 10/100/1000Base-T, 4x ports 10 Gbps SFP+, input power supply of AC ~220V

NM801-02 (44 ports)

40x ports 10/100/1000Base-T, 4x ports 10 Gbps SFP+, input power supply of DC 36V…72V
