Rugged Industrial Gigabit PoE Network

NM802

NM802

- Ext. I/Fs: 10/100/1000Base-T 10 p., 10/100/1000
  Base-BX 6p;
- Network standards: IEEE 802.3, 802.3i, 802.3u, 802.3z,
  802.3ab;
- Connection to 1000Base-T/1000Base-BX: full and
  halfduplex;
- Support of RMON (RFC1271): statistics, history, alarm,
  event;
- Support of aggregating the communication lines of the
  IEEE 802.3ad standard;
- Power supply: double-line DC network with a voltage of
  27 +1,5-4,5  V;
- Power consumption: no more than 50W;
- Operating temperature range: from - 40° C to + 55° C;
- MTBF: No less than 100,000 hours;

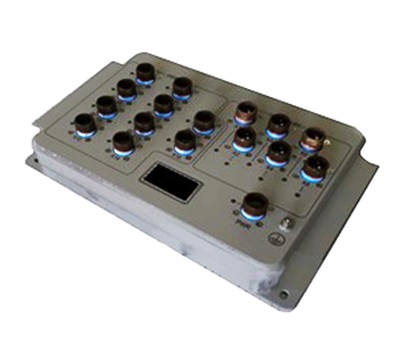

The NM802 Rugged Industrial Gigabit PoE Network Managed Switch is designed for integration into industrial networks for various purposes. Flexible adjustment of this network switch makes it possible for you to solve a wide range of tasks.
Datasheet (PDF 0.22 MB)
Manuals:
  • NM802-01

    10 ports 10/100/1000Base-T / 6 ports 10/100/1000 Base-BX, from – 40° C to +55° C;
