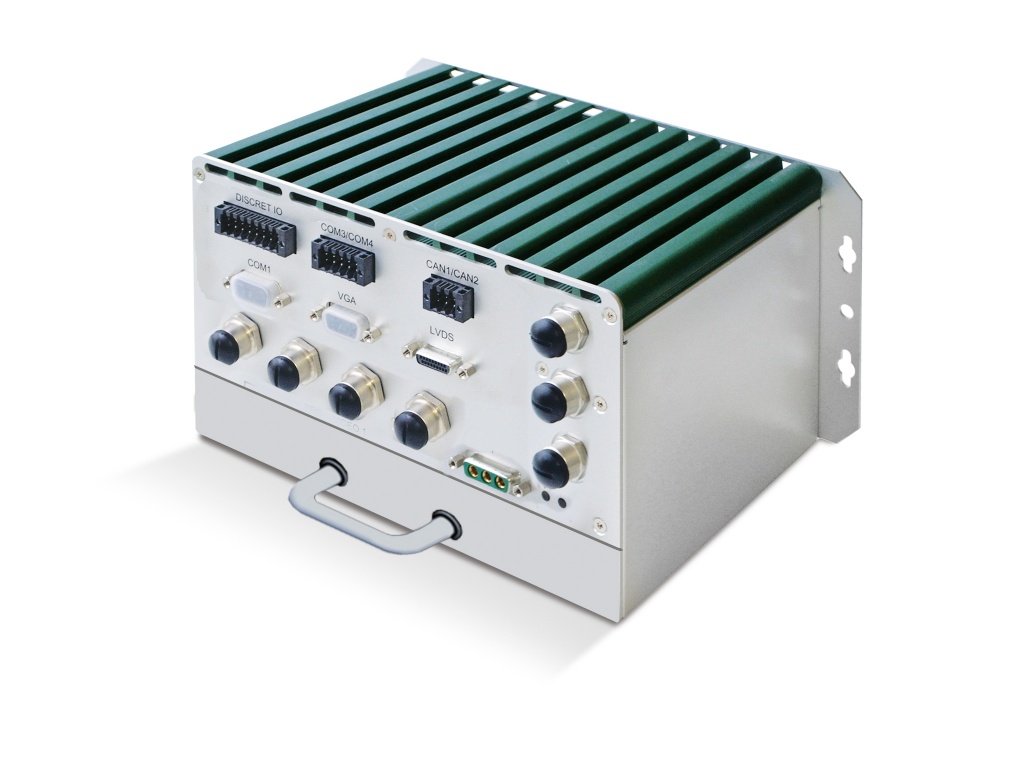

BUK02 - Video Server for Railway applications

Infotainment Platform for Rolling Stock

•    CPU: Intel PineviewM (D) 1.66 GHz Dual Core (D510)
•    RAM: 1 GB DDR2 SDRAM 667 MHz
•    User Interfaces: 2×USB 2.0, 3×Gigabit Ethernet,
•    2×RS422/485, 2×CAN, LVDS;
•    Video output: Connection of up to 8х analog
•    cameras of PAL/NTSC standard
•    Data storage subsystem: 2x removable SATA drives up to 1 TB
•    Supported OS: Linux 2.6
•    IP20
•    EN50155 compliant

Overview Downloads Sales & technical support

BUK 02 video server is designed for application in rolling equipment (railways), used in driver's cabin as the storage device for system video monitoring data.

BUK02 rugged computer from Fastwel is fully configurable and can be customized according to the specific demands of your application. The device is designed for use in transport under conditions of adverse mechanical and electromagnetic effects in the wide range of environmental temperatures (EN50155).

Datasheet (PDF 0.28 MB)
