IMS28 - 28" Network Information Module with Switching Function

Infotainment Platform for Rolling Stock

IMS28 - 28" Network Information Module with Switching Function

    •    CPU: Intel Atom E6xxT
    •    RAM: 1 GB
    •    Storage device, soldered: 4 GB
    •    Storage device, removable: CFast up to 64 GB
    •    28" display size, 745 × 184 × 65 mm
    •    Resolution: 1366×256
    •    Brightness: 1000 cd/m2
    •    EN50155 compliant

    Overview

    Downloads

    Sales & technical support

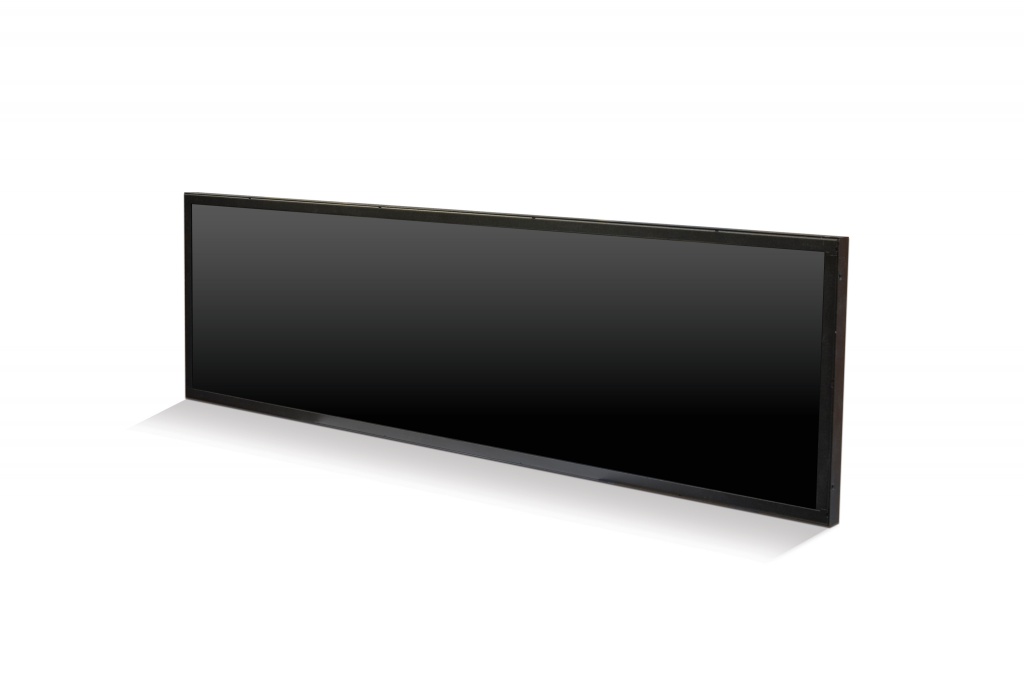

    Rugged display module used for displaying routing and promotional information in passenger cars. The module obtains information via Ethernet, performs switch function, equipped with two audio channels for the connection of loudspeakers of warning system. The device is designed for use in transport under conditions of adverse mechanical and electromagnetic effects in the wide range of environmental temperatures (EN50155). The module obtains information via Ethernet, performs switch function, equipped with two audio channels for the connection of loudspeakers of warning system.
    Datasheet (PDF 0.21 MB)
