High-Performance Fanless Embedded Computer
ER-6101(Advantix - powered by Fastwel)
• CPU: Intel Pentium/Core-i3/Core-i5/Core-i7, 6th generation;
• RAM: 4 – 32GB, 2 x DDR4 SO-DIMM, non ECC, single- or two-channel;
• GPU: integrated Intel HD Graphics 510, Dual Head support;
• Network: Two Ethernet 10/100/1000 controllers, Intel® I211 and I219-L;
• Power supply: 24V DC;
• Operating temperature range: from +5°C to +40°C;
• Cooling: convection, passive;
• OS compatibility: Microsoft Windows 7, 10;
• RAM: 4 – 32GB, 2 x DDR4 SO-DIMM, non ECC, single- or two-channel;
• GPU: integrated Intel HD Graphics 510, Dual Head support;
• Network: Two Ethernet 10/100/1000 controllers, Intel® I211 and I219-L;
• Power supply: 24V DC;
• Operating temperature range: from +5°C to +40°C;
• Cooling: convection, passive;
• OS compatibility: Microsoft Windows 7, 10;
Overview
Downloads
Order Info
Sales & technical support

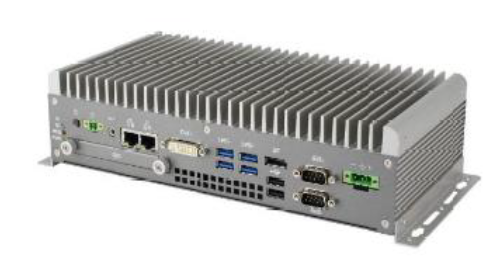

ER6101 (Advantix – powered by Fastwel) is an embedded high-performance fanless computer, characterized by compact size and is based on the Q170 chipset and Intel 6th generation CPUs. The device has several mounting options (wall-mounting, DIN-rail mounting).
Datasheet
(PDF 2.23 MB)
ER-6101 |
Fanless Embedded Computer / Pentium G4400TE 2,4 GHz/ 4GB DDR4 / 120GB SSD / Power supply unit / Wall-fixing brackets; |
