Railway solutions
On-board automatic control systems

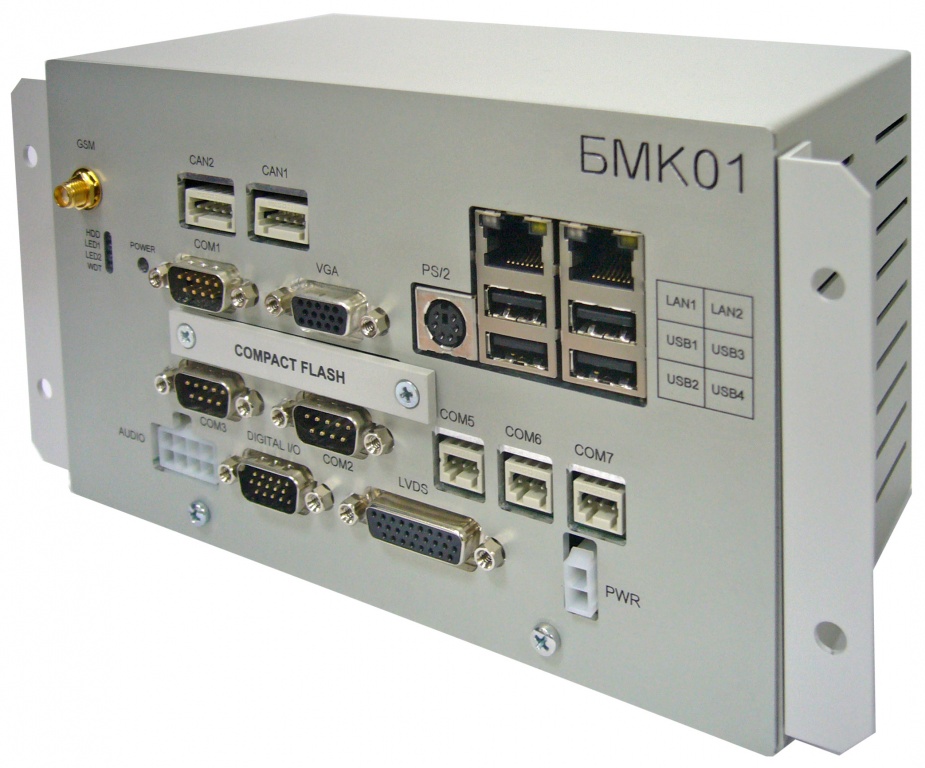

BMK01 - AMD GeodeLX 800 based Box PC
AMD Geode LX800 CPU with operation frequency 500 MHz
RAM: 256 MB
External interfaces: 2 x channels CAN2.1В, 4 x channels USB2.0, 2 x channels Ethernet 100 Mb, 4 x channels RS232, 3 x channels RS485, VGA, LVDS, PS/2, DIO, AUDIO/RELE, GSM – 850/900/1800/1900MHz.
1 x Compact Flash connector
Working supply voltage: from 43 to 160 V
IP20 (enclosure)
RAM: 256 MB
External interfaces: 2 x channels CAN2.1В, 4 x channels USB2.0, 2 x channels Ethernet 100 Mb, 4 x channels RS232, 3 x channels RS485, VGA, LVDS, PS/2, DIO, AUDIO/RELE, GSM – 850/900/1800/1900MHz.
1 x Compact Flash connector
Working supply voltage: from 43 to 160 V
IP20 (enclosure)
Overview
Downloads
Sales & technical support
AMD GeodeLX 800 based Box PC (EN50155 compliant).
Datasheet
(PDF 0.52 MB)
