CPB909

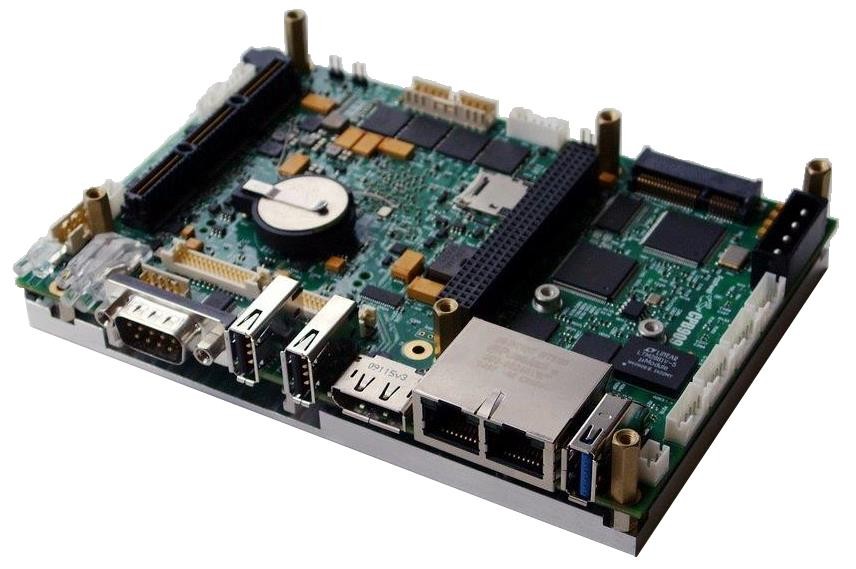

CPB909 Intel Atom E38xx-based SBC with StackPC Expansion Connector in 3.5” Form-Factor

Intel Atom E38xx-based SBC with StackPC Expansion Connector in 3.5” Form-Factor

CPB909

    •    CPU Intel Atom E38xx ( 1.33-1.91 GHz)
    •    DDR3L-1066/1333 SDRAM up to 4 GB with ECC support
    •    Integrated graphics controller, 2D/3D – accelerator
    •    FLASH BIOS: 64 Mb SPI-Flash
    •    PS/2 keyboard and mouse port
    •    Compatibility with OS: Linux, QNX, Microsoft Windows Embedded Standard 7, Microsoft Windows Embedded Standard 8
    •    Operating temperature range: From – 40°C to +85°C
    •    Power supply: +5 V

    Overview

    Downloads

    Order Info

    Sales & technical support

    CPB909 – Highly integrated Intel Atom E38xx-based SBC with StackPC ExpansionConnector in 3.5” form-factor designed for
    mission critical applications. Due to StackPC connector (StackPC: 4×1 PCIExpress, 6×USB 2.0, 2×SATA II, 2×USB 2.0, 2×SATA II, 2×RS-232, LPC, SMbus) the functionality of CPB909 could be extended with the Fastwel StackPC peripheral modules.
    Datasheet (PDF 0.85 MB)
    CPB909__ctv.pdf (PDF 5.33 MB)
    CPB909-01

    4 GB RAM, 8 GB NAND, Intel Atom E3845 (Quad Core);

    CPB909-02

    2 GB RAM, 4 GB NAND, Intel Atom E3825 (Dual Core).
