CPC310

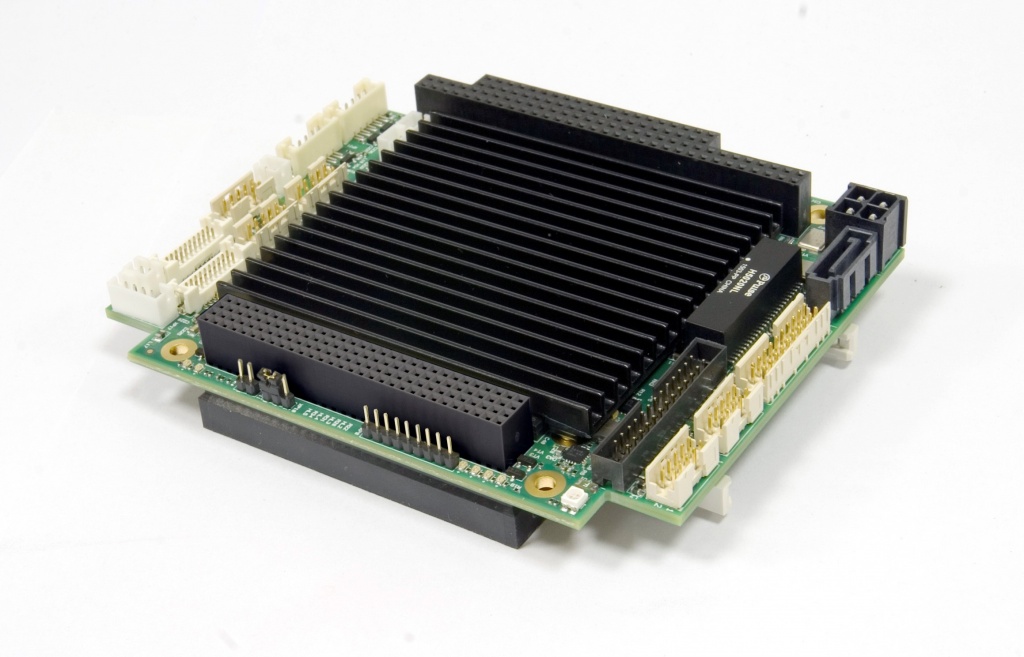

CPC310 PC/104-Plus E38xx Based SBC

PC/104-Plus E38xx Based SBC

CPC310

    •    CPU Intel Atom E38xx ( 1.33–1.46 GHz)
    •    RAM: DDR3L-1066/1333 SDRAM up to 4 GB with ECC support
    •    Integrated video controller: 2D/3D – accelerator; VGA output
    (resolution up to 2560x1600 60GHz); 2xLVDS ports
    (resolution up to 1600x1200 60GHz 18/24bit);
    •    USB ports: Support of USB 1.1 (12 Mb/sec), USB 2.0 (480 Mb/sec);
    Connection up to 4x devices
    •    PS/2 keyboard and mouse port
    •    Compatibility with OS: Linux, QNX; Microsoft Windows Embedded
    Standard 8; Microsoft Windows Embedded Standard 7
    •    Power supply: +5 V
    •    Operating temperature range: from –40°C up to +85°C

    Overview

    Downloads

    Order Info

    Sales & technical support

    CPC310 represents an embedded single-board computer in PC/104- Plus format designed for missioncritical applications.
    Datasheet (PDF 0.7 MB)
    CPC310_manual.pdf (PDF 2.53 MB)
    CPC310 - 01

    4 GB RAM, 8 GB NAND, Intel Atom E3825 (Dual Core)

    CPC310 - 02

    2 GB RAM, 4 GB NAND, Intel Atom E3815 (Single Core)

    Cables and connectors
