MK308

MK308 PC platform for modules in PC/104+ form-factor

PC platform for modules in PC/104+ form-factor

MK308

    •    Compact Flash: 16 GB
    •    2xLAN 10/100/1000 Mb/s, 3xUSB 2.0, VGA, 1xRS-232 and
    •    4xRS485/422 serial ports, 2xCAN, PS/2, 4xGPIO,
    •    GLONASS/GPS aerial input, GSM aerial input, WiFi aerial input
    •    Operating temperature range: –40°C to + 70°C
    •    OS: FreeDOS, Windows XPe, Linux 2.6, QNX v.6.5
    •    Vibration/single shocks/multiple shocks resistance: 5g/100g/50g
    •    IP65
    •    Installation of up to 7 PC/104+ modules

    Overview

    Downloads

    Order Info

    Sales & technical support

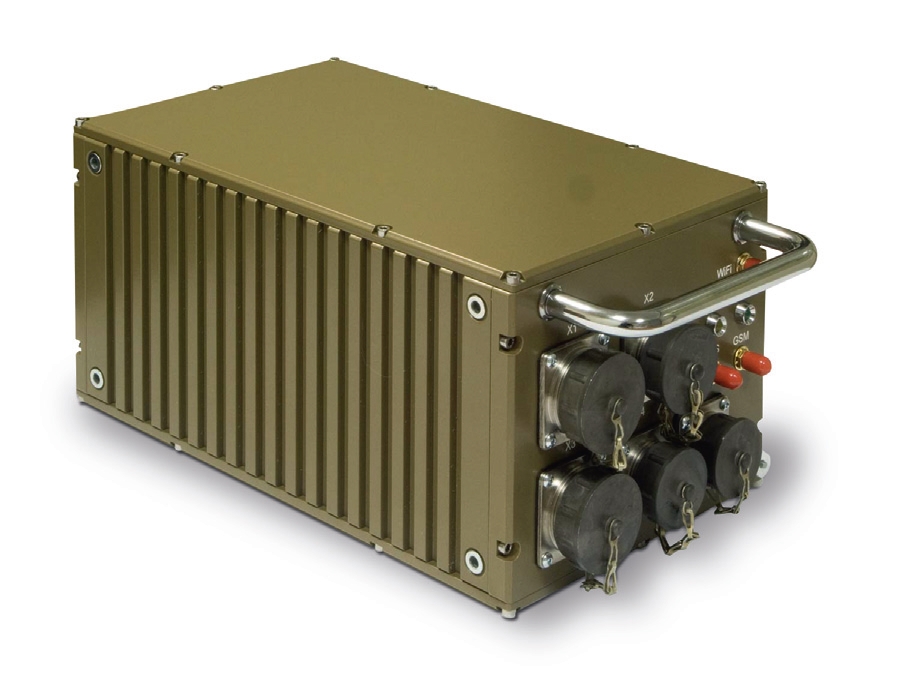

    МК308 is a basic PC platform for modules in PC/104+ form-factor.

    The Box PC enables conductive heat transfer to the enclosure and makes it possible to install additional extension modules. The basic hardware configuration contains:

    - CPC308-03 (Intel Atom D510 based Processor Module)

    - CNM350 Communication and Navigation Module

    - NIM351 Interface Module

    - NIM353 WiFi Module

    - PS351 Power Supply Module

    The Box PC has the following operating temperature range: –40°C to +70°C.

    MK308 – Rugged Box PC from Fastwel is fully configurable and can be customized according to the specific demands of your application.
    Datasheet (PDF 0.24 MB)
    MK308-01

    Rugged Box PC, 2×LAN 10/100/1000 Mb/s, 3×USB 2.0, VGA, 1×RS-232 and 4×RS-485/422 serial ports, 2×CAN, PS/2, 4×GPIO, GLONASS/GPS aerial input, GSM aerial input, WiFi aerial input, 11-36 V
