CPC1311

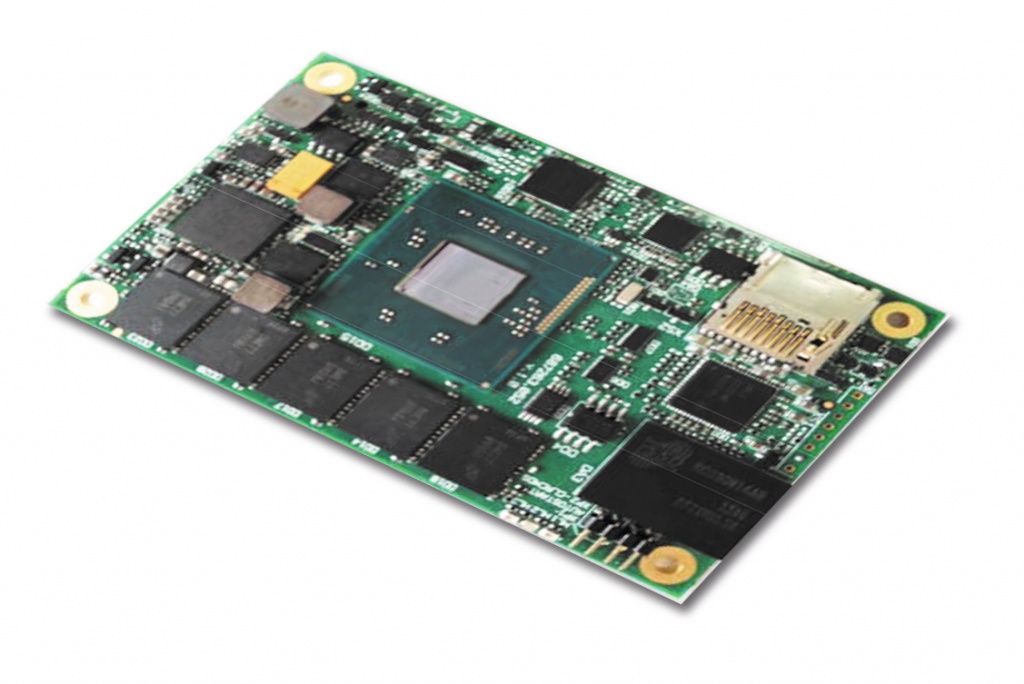

CPC1311 COM Express® mini (Type 10) Intel Atom  E38хх based CPU Module

COM Express® mini (Type 10) Intel Atom E38хх based CPU Module

CPC1311

    •    CPU: Intel Atom: E3845: 1.91 GHz, 4x core, (CPC1311-01 version); E3825: 1.33 GHz, 2x cores, (CPC1311-02 version) E3827: 1.75 GHz, 2x cores, (CPC1311-03 version)
    •    L1-Cache (32 KB of instructions, 24 KB of data); L2-Cache 1024 KB
    •    RAM: DDR3L-1066/1333 SDRAM up to 4 GB with ECC support
    •    SSD SATA Flash-drive: 4 GB (SLC NAND Flash)
    •    Watchdog timer: 1.2 sec …10 sec
    •    Operating temperature range: –40°C up to +85°C
    •    Power supply: from COM-Express connector with extended range (from 4.75 V to 20 V)
    •    Input is equipped with overvoltage protection and pulse interference protection
    •    OS support: Linux 2.6; QNX 6.5; Microsoft Windows Embedded Standard 8; Microsoft Windows Embedded Standard 7

    Overview

    Downloads

    Order Info

    Sales & technical support

    The mezzanine CPU-module COM Express mini, Type 10, 55x84 mm is designed for building of highly reliable embedded power-efficient systems with compact sizes. The module corresponds to the "PICMG  COM.0 COM Express Module Base Specification Revision 2.1"
    Datasheet (PDF 0.7 MB)
    CPC1311.pdf (PDF 2.5 MB)
    CPC1311-01

    E3845: 1.91 GHz, 4 cores, 4 GB DDR3L SDRAM

    CPC1311-02

    E3825: 1.33 GHz, 2 cores, 2 GB DDR3L SDRAM

    CPC1311-03

    E3827: 1.75 GHz, 2 cores, 2 GB DDR3L SDR
