VIM552 3U CompactPCI Graphical Processor module

3U CompactPCI Graphical Processor module

VIM552

    •    Compliance with PICMG 2.30 and PICMG S.0 standards
    •    LynxExp SM750 graphics processor,
    •    64 MB DDR SDRAM
    •    VGA (up to 1920×1440) and DVI-I (up to 1920×1200)
    •    front panel interfaces
    •    One USB 2.0 on front panel
    •    One SATA channel with possibility to mount a 2.5" HDD
    •    Passive cooling
    •    Operating temperature: –40°C to +85°C (IEC 68-2-14-84)
    •    Windows XP (Embedded), Windows 7, Linux 2.6

    Overview

    Downloads

    Order Info

    Sales & technical support

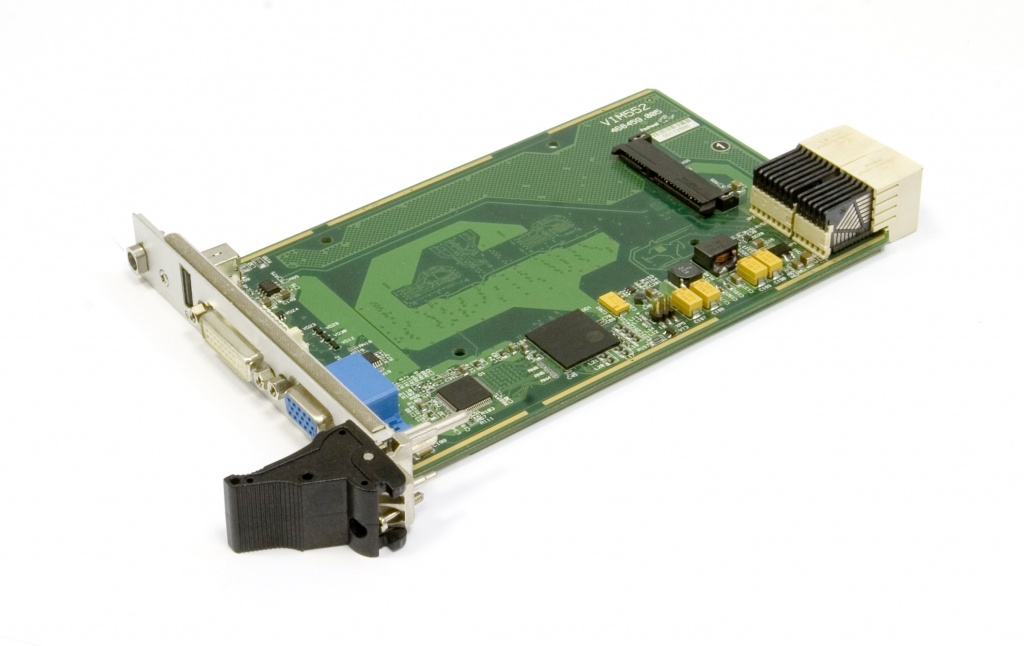

    VIM552 is a graphics processor module designed for use in systems based on CPC506 processor module conforming to CompactPCI® PlusIO specification or in systems compliant to CompactPCI® Serial specification. The module has two independent outputs with DVI-I and VGA interfaces; they can be used together with integrated graphics subsystem of the processor module.

    VIM552 is based on Silicon Motion SM750 graphics controller having low power consumption; this allows to manage with passive cooling and using the module as a 2.5” SATA disk carrier.

    There is USB connector on the front panel; this enables connection of touch screen displays. The second USB interface (optional) is routed to DVI connector to the lines not used in single-link mode. This allows to deliver USB directly to the target device via a dual-link DVI cable.
    Datasheet (PDF 0.58 MB)
    VIM552 version 1.4.pdf (PDF 1.46 MB)
    VIM552-02-I

    VIM552 64Mb RAM, DVI-I, VGA, USB, SATA; DVI-D, VGA on RearIO, industrial temperature range (–40°С to +85°С)
