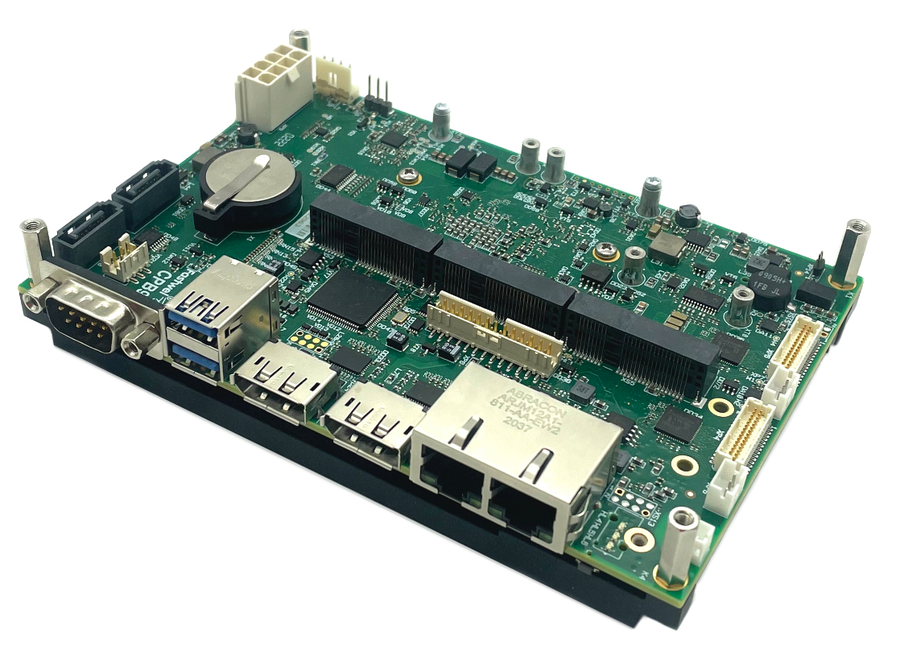

Processor Module - 3.5" Form Factor Computing Unit Based on AMD Ryzen Embedded Processor (V1000 or R1000)

CPB910

CPU: AMD Ryzen Embedded (V1000) or AMD Ryzen Embedded (R1000) processor
AMD Ryzen Embedded V1404I (for CPB910-01);
AMD Ryzen Embedded R1305G
(for CPB910-02).
RAM: 16 GB 2-channel (for CPB910-01); 8 GB 1-channel (for CPB910-02)
Flash BIOS: 8 MB SPI-Flash.
FRAM memory: 4 KB for storing user data.
Operating temperature range: -40 ºC to plus 85 ºC.
OS software compatibility: Linux.

Overview Downloads Order Info Sales & technical support

3.5" embedded single-board computer designed for embedded applications requiring high performance and low power consumption.

Datasheet (PDF 1.51 MB)

CPB910-01

AMD Ryzen Embedded V1404I (Quad Core) /16GB DDR4 RAM ECC /M.2 /2xSATA /2x Ethernet /3x USB 2.0 /2xUSB 3.0 /1x RS-232 /2xDisplayPort /2xLVDS /3xMiniPCIe.

CPB910-02

AMD Ryzen Embedded R1305G (Dual Core) /8GB DDR4 RAM ECC/ M.2 /2xSATA/ 2x Ethernet /2x USB 2.0 /2xUSB 3.0 /1x RS-232 /2xDisplayPort /LVDS /2xMiniPCIe
