AIC324

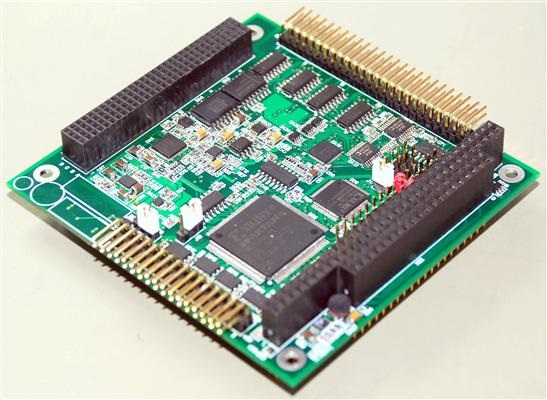

AIC324 Analog and digital input output module

Analog and digital input output module

AIC324

    •    System controller interface – PC/104 (ISA 16 bit)
    •    Pass-through PCI bus
    •    32 analog inputs; ADC 16 bit; 250 kHz; ±10 V … ±0.625 V,
    •    4 analog outputs; DAC 16 bit; 6 s; ±10 V … ±2.5V; programmable calibration of analog circuits;
    •    24 discrete input/output channels; 3.3 V or 5 V CMOS; support for 16-bit and 32-bit counters; electrostatic protection of outputs
    •    Analog/discrete isolation: 500 V
    •    Supported operating systems: Fastwel DOS, Linux, QNX

    Overview

    Downloads

    Order Info

    Sales & technical support

    Analog and digital input output module with auto calibration.
    Datasheet (PDF 0.43 MB)
    AIC324manual.pdf (PDF 0.62 MB)
    AIC324-01

    AIC324-01 – analog and digital input/output module
