DIC551

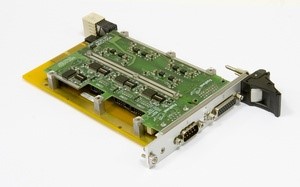

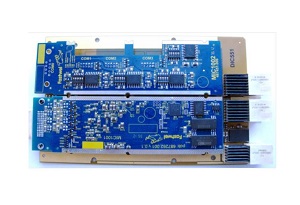

DIC551  3U CompactPCI Serial Mezzanine Carrier Module

3U CompactPCI Serial Mezzanine Carrier Module

DIC551

    • System Bus PCIe x1;
    • Support of up to 2 single size mezzanine boards and 1 double size mezzanine board
    • "Hot swap" of modules
    • Availability of rear output of signals form the module
    • Developer kit on the basis of M551T for the development of
    • proprietary mezzanine boards;
    • Operating temperature range: –40…+85°С
    • Relative humidity: up to 95% at +25°С

    Overview

    Downloads

    Order Info

    Sales & technical support

    3U CompactPCI Serial Mezzanine Carrier Module.

    Universal digital and analog I/O module for operation on CompactPCI® Serial bus. Module's functionality is determined by the installed mezzanine boards. DIC 551 is designed for the use in real-time control systems, manufacturing control and data acquisition systems etc. The mezzanine carrier is implemented in CompactPCI® Serial 4HP 3U PCIe x1 standard and makes it possible to place formats of Eurocard type and formats with conductive cooling. Two mezzanine boards can be installed on the carrier and provides possibility of rear or front output of signals from mezzanine. Mezzanine is a functionally complete board, providing analog or digital I/O. Mezzanine version is independent of the PC system bus used, mezzanine's interaction with the carrier board is carried out with the use of "simple" serial and parallel communication channels (SPI, SPORT, UART etc.). Interaction of the "simple" communication channels and system bus is carried out by the carrier board.
    Datasheet (PDF 0.68 MB)
    DIC551-UM__ver1_.pdf (PDF 2.83 MB)
    DIC551 - 01

    3U DIC551 mezzanine carrier module with front output

    DIC551 - 02

    4U DIC551mezzanine module with the rear output and conductive heat removal

    Mezzanine available:

    MIC1001 - 02

    Analog I/O mezzanine board with the rear I/O

    MIC1002 - 01

    Mezzanine of RS-485/422/232 interfaces with the front I/O

    MIC1002 - 02

    Mezzanine of RS-485/422/232 interfaces with the rear I/O

    MIC1003 - 01

    Digital I/O mezzanine with the front I/O

    MIC1003 - 02

    Digital I/O mezzanine with the rear I/O

    MIC1004 - 01

    Mezzanine of the current loop interfaces with the front I/O

    MIC1004 - 02

    Mezzanine of the current loop interfaces with the rear I/O
