ICC19x   ISA-8 mounting cage for MicroPC

ISA-8 mounting cage for MicroPC

ICC19x

    •    Compatible with Octagon 51xx series power supplies
    •    Compatible with all MicroPC modules
    •    4-side modules fixation

    Overview

    Downloads

    Order Info

    Sales & technical support

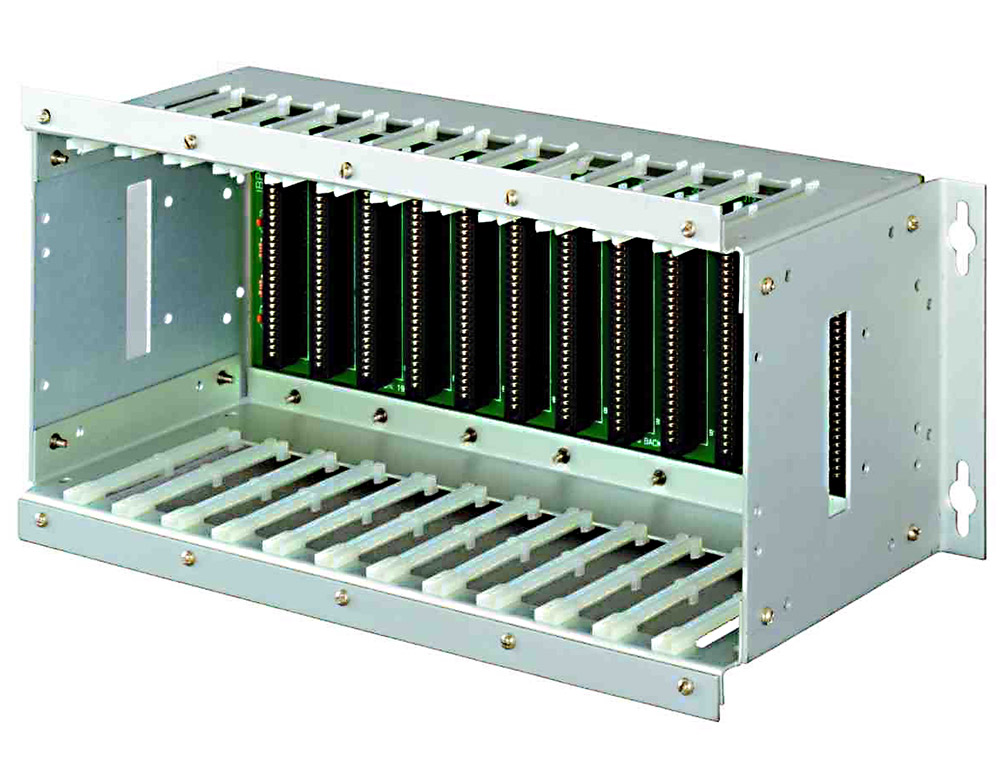

    The ICC19x card cages provide three-sides fixing of cards. Moreover, to further improve mechanical stability, an additional fixing plates can be used. The plates are supplied with each of the card cages.

    The passive backplane with ISA sockets is installed on the back side of the cage.

    The slots spacing is 22.86 mm (9/10 in).There are openings on the side walls for fastening of power supply unit or other accessories. Mounting a 51xx-series power supply unit on the side wall increases unit width by 50.8 mm (2").
    Datasheet (PDF 0.07 MB)
    ICC19x_manual.pdf (PDF 0.39 MB)
    ICC19001

    ISA-8 card cage MicroPC, 4 slots, rear mount

    ICC19101

    ISA-8 card cage MicroPC, 8 slots, rear mount

    ICC19201

    ISA-8 card cage MicroPC, 12 slots, rear mount

    ICC19301

    ISA-8 card cage MicroPC, 3 slots, table mount

    ICC19401

    ISA-8 card cage MicroPC, 6 slots, wall mount
