CPC109 MicroPC CPU Module with Data Acquisition System

MicroPC CPU Module with Data Acquisition System

CPC109

    •    Vortex86DX™ 600 MHz
    •    256 MB DDR II SDRAM soldered
    •    Fast Ethernet port
    •    CF I/II socket, 1 GB SLC NAND Flash soldered
    •    Four USB 2.0
    •    Digital I/O port: 72 CMOS/TTL lines
    •    8/2 isolated analog I/O, 12 bit ADC/DAC
    •    Two RS-232, two RS-422/485 isolated
    •    Operating temperature range: - 40C...+85C

    Overview

    Downloads

    Order Info

    Sales & technical support

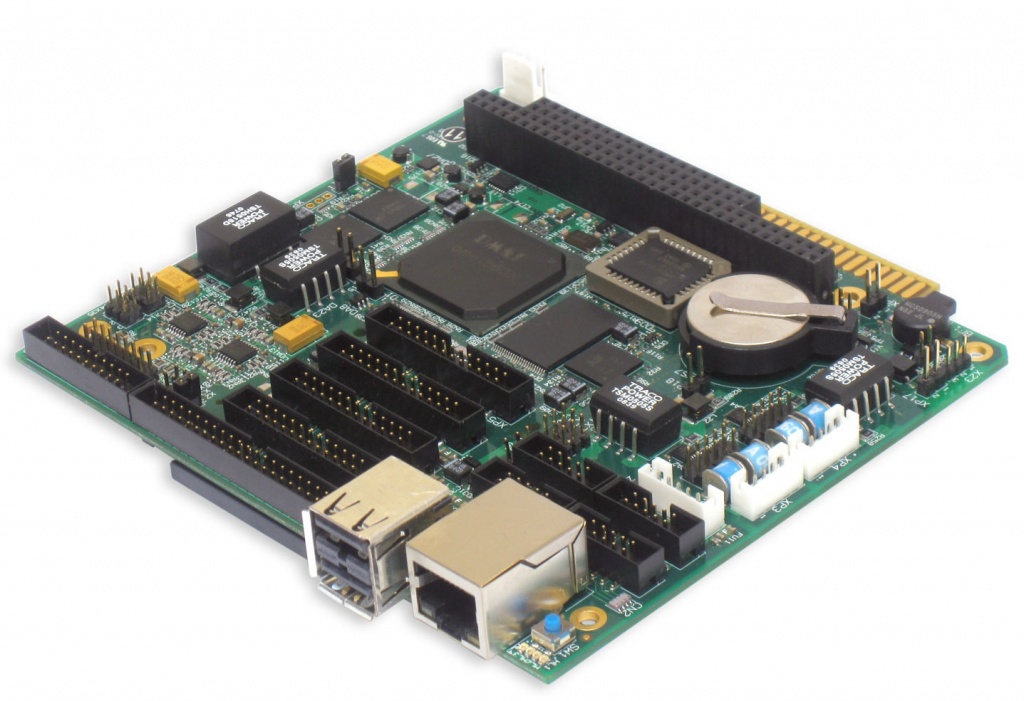

    CPC109 MicroPC CPU module is a highly integrated x86 compatible solution for use in realtime control
    systems, in industrial automation, in data acquisition and processing.

    The module can operate as a standalone or a slave device. Connection of basic input-output devices, such as VGA monitors, LCD panels, matrix and AT keyboards, printers, FDD drives, and USB devices allows using CPC109 in human operated systems.

    An onboard flash drive, external IDE or USB drives can be used for data storage.

    CPC109 module is capable to accomplish most of the input-output tasks for discrete and analog signals.

    Besides, possibility to reprogram the onboard FPGA insystem provides extra flexibility in tailoring the module for different applications.

    Along with standard MicroPC bus (8bit ISA) CPC109 is equipped with PC/104 ISA (8/16bit) connector allowing connection of additional expansion modules. Moreover, the module can operate in RS232, RS422/485, and Ethernet networks as part of a distributed system.
    Datasheet (PDF 0.32 MB)
    CPC10901

    CPC109 MicroPC CPU card, Vortex86DX 600MHz, 256MB DDR2 SDRAM, 1GB FFD, Discrete I/O: 48+24 lines, 2 x RS-232, 2 x RS-422/485 (Isolated); Analog I/O: 8AI, 2AO (Isolated).

    CPC10902

    CPC109 MicroPC CPU card, Vortex86DX 600MHz, 256MB DDR2 SDRAM, 1GB FFD, Discrete I/O: 48+24 lines, 2 x RS-232, 2 x RS-422/485 (Isolated)

    CPC10903

    CPC109 MicroPC CPU card, Vortex86DX 600MHz, 256MB DDR2 SDRAM, 1GB FFD, 2 x RS-232, 2 x RS-422/485 (Isolated)

    CPC10902\COATED

    Controller module CPC109, Vortex86DX 600МHz, 256MB DDR2 SDRAM, 2Gb FFD, NV SRAM 128Kb, PC-104 ISA 16-bit, Ethernet 10/100 Mbps, 4 x USB 2.0, 2 x RS-232, 2 x RS-422/485 (isolated). Digital I/O: 48+24 channels, conformal coating

    CPC10901\COATED

    Controller module CPC109, Vortex86DX 600МHz, 256MB DDR2 SDRAM, 2Gb FFD, NV SRAM 128Kb, PC-104 ISA 16-bit, Ethernet 10/100 Mbps, 4 x USB 2. 2 x RS-232, 2 x RS-422/485); Digital I/O: 48+24 channels, Analog I/O: 8AI, 2A, conformal coating

    CPC10901\LNX

    Controller module CPC109, Vortex86DX 600МHz, 256MB DDR2 SDRAM, 2Gb FFD, NV SRAM 128Kb, PC-104 ISA 16-bit, Ethernet 10/100 Mbps, 4 x USB 2. 2 x RS-232, 2 x RS-422/485); Digital I/O: 48+24 channels, Analog I/O: 8AI, 2A, Linux

    CPC10903\COATED

    Controller module CPC109, Vortex86DX 600МHz, 256MB DDR2 SDRAM, 2Gb FFD, Ethernet 10/100 Mbps, 4 x USB 2.0, 2 x RS-232, 2 x RS-422/485 (isolated), conformal coating

    Cables and connectors

    Components for embedded systems design
