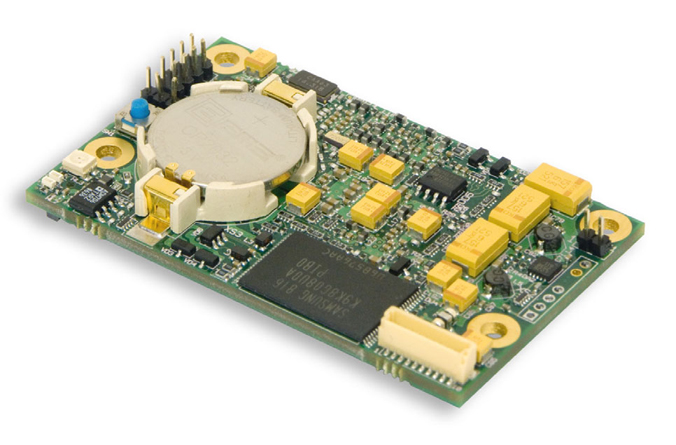

CPB906

CPB906 "FemtoCore" module based on Vortex86DX

"FemtoCore" module based on Vortex86DX

CPB906

    •    Vortex86DX processor 600 MHz
    •    256 MB DDR2 SDRAM
    •    10/100 Mbit/s Fast Ethernet
    •    32-bit PCI, 8-bit ISA, LPC
    •    Two USB 2.0
    •    IDE interface (alternative 2×SDIO)
    •    Two RS-232, PS/2
    •    Eight digital I/O ports
    •    Industrial operating temperature range: –40°C to +85°C

    Overview

    Downloads

    Order Info

    Sales & technical support

    Fastwel CPB906 is a Computer Module designed for use as a computing core in application specific embedded systems.

    Fastwel CPB906 is based on x86 code compatible CPU - Vortex86DX running at 600 MHz and addressing 256 MB DDR2 SDRAM.

    CPB906 has just a 65×40 mm footprint (57% of credit card size). It is so far the smallest x86 Computer-on-Module, which is a perfect choice for space constrained applications.

    All basic interfaces are routed to the highdensity 220-contact bottom-side connector for installation on a customized carrier board bearing standard interface connectors.

    Fastwel custom design division offers development of application specific embedded systems based on CPB906 computer module.

    Fastwel CPB906 supports DOS, Windows CE 5.0, Linux 2.6 and QNX 6.3 operating systems.
    Datasheet (PDF 0.56 MB)
    spb906manual.pdf (PDF 1.1 MB)
    CPB906-01-I

    Computer-on-Module Vortex86DX 600 MHz, 256 MB DDR2 SDRAM, 128 MB FFD, PCI, ISA, Ethernet10/100 Mb/s, LPC, IDE/2SDIO, 2xUSB2.0, 2xRS232, 8xDigital I/O Industrial T range -40…+85

    DVK906-01

    Development kit DVK906 (FDOS)

    DVK906-02

    Development kit DVK906 (WindowsCE)

    DVK906-03

    Development kit DVK906 (Linux)

    KIB880-01

    EPIC form-factor carrier board for FCOM CPB906, 4xCOM ports, LPT, 2 x USB2.0, LAN 10/100 Mbps, NV SRAM 128 Kbyte, PC104+(8-bit ISA,32-bit PCI), 1xIDE port / 2 miniSD slots, CF, 8 GPIO lines, Commercial T range: 0...+70 C
