CNM550

CNM550 3U CompactPCI GSM/UMTS Wireless Communication and GPS/GLONASS Positioning Module

3U CompactPCI GSM/UMTS Wireless Communication and GPS/GLONASS Positioning Module

CNM550

    •    Compliance with PICMG 2.0 specification (32-bit / 33 MHz)
    •    Supports Windows XP Embedded/Vista/7, Linux
    •    GSM 850/900/1800/1900 MHz, UMTS 850/1900/2100 MHz
    •    Data transmission: GPRS (up to 48 Kbit/s reception/transmission), EDGE (up to 236.8 Kbit/s reception), HSDPA (up to 7.2 Mbit reception), HSUPA class 5 (up to 2 Mbit transmission)
    •    Two SIM/USIM card sockets
    •    USB 2.0 device interface
    •    24 universal GPS/GLONASS channels; maximum
    •    positioning error – 5 m (2 m in differential mode)
    •    External GSM/UMTS and GSM/ GLONASS antennas support
    •    Operating temperature: –40°C to +85°C (IEC 68-2-14-84)

    Overview

    Downloads

    Order Info

    Sales & technical support

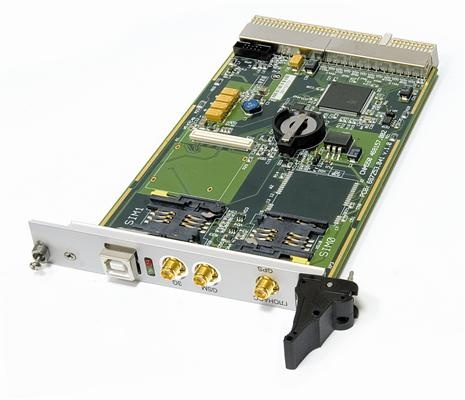

    CNM550 is a 3U CompactPCI navigation and wireless communication module with Q26Extreme GSM/UMTS GPRS/EDGE/HSPA modem and MNPM7 GPS/GLONASS receiver (IMES.468157.00201) designed to be used for embedded computing systems with applications requiring global positioning information, source for external real time clock and/or wireless voice or data channel via GSM/UMTS networks.
    Datasheet (PDF 0.48 MB)
    CNM550manual.pdf (PDF 2.09 MB)
    CNM550-01

    Navigation and communication module with Q2687 GSM GPRS/EDGE modem and MNP-M7 GPS/GLONASS receiver (IMES.468157.002-01)

    CNM550-02

    Navigation module with MNP-M7 GPS/GLONASS receiver (IMES.468157.002-02)
