CPC503

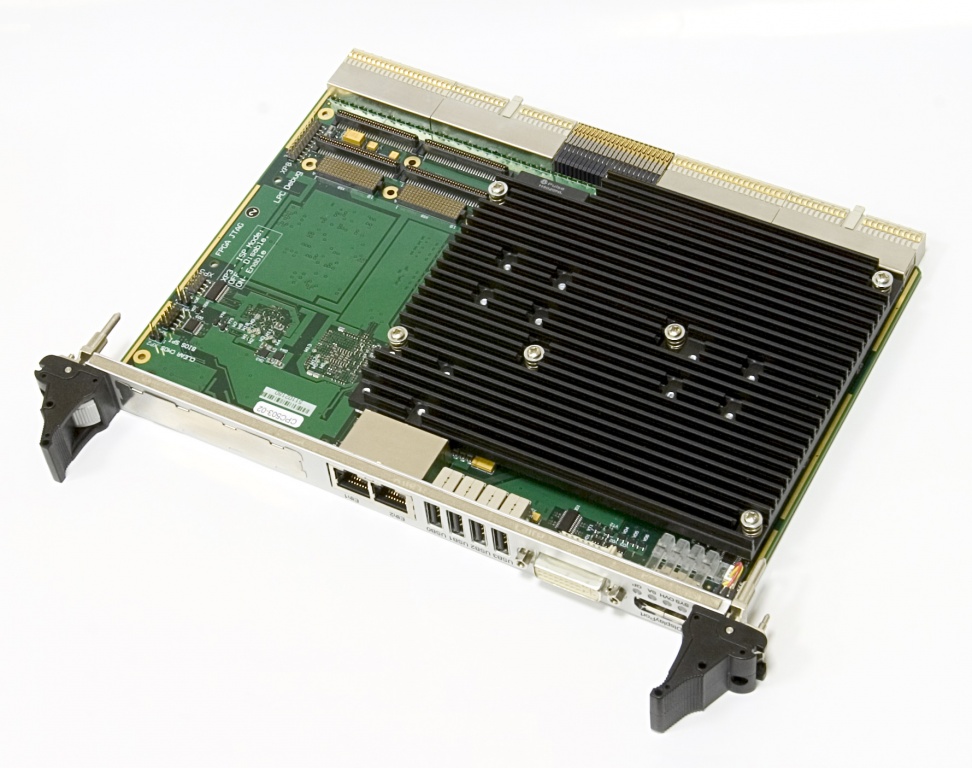

CPC503 6U cPCI CPU Module

6U cPCI CPU Module

CPC503

    For CPC503-01 Intel Core 2nd Gen (2/4 Cores):
    • Core i7-2715QE 6 MB 4C 2.1 GHz SV 45 W;
    • Core i7-2655LE 4 MB 2C 2.2 GHz LV 25 W;
    • Core i7-2610UE 4 MB 2C 1.5 GHz ULV 17 W.
    For CPC503-02, Intel Core 3rd Gen (2/4 Cores):
    • Core i7-3612QE 6 MB 4C 2.1 GHz SV 35 W;
    • Core i7-3555LE 4 MB 2C 2.5 GHz LV 25 W;
    • Core i7-3517UE 4 MB 2C 1.7 GHz ULV 17 W.
    • RAM: DDR3 SDRAM 1333 MHz with ECC up to 4 GB,
    dual channel, soldered (for CPC503-01);
    • DDR3L SDRAM 1600 MHz with ECC up to 8 GB,
    dual channel, soldered (for CPC503-02);
    • 1x XMC/PMC expansion module
    (x8 PCI-E GEN2/GEN3 + 64 bit/133 MHz PCI-X);
    • 4x Gigabit Ethernet controllers
    (2x ports switchable between P16 XMC connector and backplane 2x ports
    are available at the front panel);
    • 10x USB 2.0 ports with HS, FS and LS support
    (4x on front panel, 4x via RIO, 2x on P16 XMC);
    • 4x SATA II ports (1x for 1.8" HDD, 1x at P16 XMC, 2x via RIO);
    • 2x Display port interfaces (1x on front panel, 1x via RIO);
    • 1x DVI-I on front panel;
    • 1x DVI-D via RIO;
    • HD Audio via RIO and P16 XMC;
    • LPC is routed via RIO, P16 socket;
    • Supported OS: Linux 2.6, QNX 6.5, Windows Embedded Standard 7;
    • Operating temperature range: Industrial: –40°C to +85°C;
    • Commercial: 0°C to +70°C MTBF: No less than 60 000.

    Overview

    Downloads

    Order Info

    Sales & technical support

    CPC503 6U CompactPCI CPU module is an embedded computer on x86 platform
    for use in server or client systems for a wide range of applications. CPC503 is based
    on 2-nd generation Intel Core i7 (2/4 cores) processors operating at frequencies
    from 1.5 to 2.2 GHz and on QM67 Peripheral Controller Hub.
    Up to 8 GB of DDR3 SDRAM memory with ECC operating at 1333 MHz is soldered
    onboard the CPC503.
    CPC503 graphics capabilities include VGA, Displayport, DVI, and LVDS interfaces.
    Four Gigabit Ethernet ports are used for networking.
    Interface set of CPC503 also includes 12 USB 2.0 ports, four SATA channels, audio
    interface and standard J1-J5 CompactPCI connectors at the rear edge of the board.
    Fastwel CPC503 supports one XMC/PMC expansion module mounted onboard and
    specially designed Fastwel RIO587 rear I/O module. CPC503 provides one 64-bit 66
    MHz CompactPCI interface with hot swap capability. The module interfaces with
    CompactPCI bus via the built-in PCI-E <-> PCI bridge, this allows using CPC503
    either as master system controller or as a slave device in one PCI bus segment.
    One of the features of CPC503 is support for PICMG CompactPCI Packet Switching
    Backplane Specification version 2.16. Being installed on a backplane supporting the
    packet switching mode, CPC503 can communicate with peripheral devices or with
    the system master board supporting this mode via two Gigabit Ethernet ports.
    The components of CPC503 are carefully selected according to the criteria of applicability
    in embedded systems and long-term availability on the market. This makes
    this module an ideal device, based on which the systems with long life cycle can be
    built.
    CPC503 is compatible with Windows 7, QNX 6.5.0, VxWorks 6.8 (on request), and
    Linux® 2.6 operating systems.
    Datasheet (PDF 3.21 MB)
    CPC503manual.pdf (PDF 2.95 MB)
    CPC503-01-I72C1.5-RAM4G-R1-C\COATED

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/4HP.Intel Core i7-2610UE 1.5 GHz (17W), 4GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay. 0..70'C\сoated

    CPC503-01-I72C1.5-RAM4G-R1-I

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/4HP.Intel Core i7-2610UE 1.5 GHz (17W), 4GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay. -40..85'C

    CPC503-01-I72C1.5-RAM4G-R1-I\COATED

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/4HP.Intel Core i7-2610UE 1.5 GHz (17W), 4GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay. -40..85'C\сoated

    CPC503-01-I72C2.2-RAM4G-R1-C

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/4HP.Intel Core i7-2655LE 2.2 GHz (25W), 4GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay. 0..70'C

    CPC503-01-I72C2.2-RAM4G-R1-C\COATED

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/4HP.Intel Core i7-2655LE 2.2 GHz (25W), 4GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay. 0..70'C\с

    CPC503-01-I72C2.2-RAM4G-R1-I

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/4HP.Intel Core i7-2655LE 2.2 GHz (25W), 4GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay.-40..85'C

    CPC503-01-I72C2.2-RAM4G-R1-I\COATED

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/4HP.Intel Core i7-2655LE 2.2 GHz (25W), 4GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay.-40..85'C\сoated

    CPC503-01-I74C2.1-RAM4G-R2-C

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/8HP.Intel Core i7-2715QE 2.1 GHz (45W), 4GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay. 0..70'C

    CPC503-01-I74C2.1-RAM4G-R2-C\COATED

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/8HP.Intel Core i7-2715QE 2.1 GHz (45W), 4GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay. 0..70'C\сoated

    CPC503-01-I74C2.1-RAM8G-R2-C

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/8HP.Intel Core i7-2715QE 2.1 GHz (45W), 8GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay. 0..70'C

    CPC503-01-I74C2.1-RAM8G-R2-C\COATED

    CPC503-01 CompactPCI 2.0/2.16 Host Processor module 6U/8HP.Intel Core i7-2715QE 2.1 GHz (45W), 8GB DDR3 SDRAM ECC soldered.4xGigabit Ethernet. DisplayPort, DVI-I.4ГB Flash.1,8"HDD bay. 0..70'C\сoated

    CPC503-02-I72C1.7-RAM4G-R1-C

    CPCI 2.0/2.16 6U/4HP: Intel IvyBridge Core i7-3517UE 1,7 GHz, 4GB ЕСС, 8 GB NAND, 4 GbEthernet, 12 USB, DVI-I, DisplayPort, XMC slot, 0..70'C

    CPC503-02-I72C1.7-RAM4G-R1-C\COATED

    CPCI 2.0/2.16 6U/4HP: Intel IvyBridge Core i7-3517UE 1,7 GHz, 4GB ЕСС, 8GB NAND, 4 GbEthernet, 12 USB, DVI-I, DisplayPort, XMC slot, 0..70'C, coated

    CPC503-02-I72C1.7-RAM4G-R1-I

    CPCI 2.0/2.16 6U/4HP: Intel IvyBridge Core i7-3517UE 1,7 GHz, 4GB ЕСС, 8 GB NAND, 4 GbEthernet, 12 USB, DVI-I, DisplayPort, XMC slot, -40..+85'C

    CPC503-02-I72C1.7-RAM4G-R1-I\COATED

    CPCI 2.0/2.16 6U/4HP: Intel IvyBridge Core i7-3517UE 1,7 GHz, 4GB ЕСС, 8GB NAND, 4 GbEthernet, 12 USB, DVI-I, DisplayPort, XMC slot, -40..+85'C, coated

    CPC503-02-I72C2.5-RAM4G-R1-C

    CPCI 2.0/2.16 6U/4HP: Intel IvyBridge Core i7-3555LE 2,5 GHz, 4GB ЕСС, 8GB NAND, 4 GbEthernet, 12 USB, DVI-I, DisplayPort, XMC slot, 0..70'C

    CPC503-02-I72C2.5-RAM4G-R1-C\COATED

    CPCI 2.0/2.16 6U/4HP: Intel IvyBridge Core i7-3555LE 2,5 GHz, 4GB ЕСС, 8GB NAND, 4 GbEthernet, 12 USB, DVI-I, DisplayPort, XMC, 0..70'C, coated

    CPC503-02-I72C2.5-RAM8G-R1-C

    CPCI 2.0/2.16 6U/4HP: Intel IvyBridge Core i7-3555LE 2,5 GHz, 8GB ЕСС, 8 GB NAND, 4 GbEthernet, 12 USB, DVI-I, DisplayPort, XMC slot, 0..70'C

    CPC503-02-I72C2.5-RAM8G-R1-C\COATED

    CPCI 2.0/2.16 6U/4HP: Intel IvyBridge Core i7-3555LE 2,5 GHz, 8GB ЕСС, 8GB NAND, 4 GbEthernet, 12 USB, DVI-I, DisplayPort, XMC slot, 0..70'C, coated

    CPC503-02-I74C2.1-RAM8G-R2-C

    CPCI 2.0/2.16 6U/8HP: Intel IvyBridge Core i7-3612QE 2,1 GHz, 8GB ЕСС, 8GB NAND, 4 GbEthernet, 12 USB, DVI-I, DisplayPort, XMC slot, 0..70'C

    CPC503-02-I74C2.1-RAM8G-R2-C\COATED

    CPCI 2.0/2.16 6U/8HP: Intel IvyBridge Core i7-3612QE 2,1 GHz, 8GB ЕСС, 8 GB NAND, 4 GbEthernet, 12 USB, DVI-I, DisplayPort, XMC slot, 0..70 C, coated

    MIC1901-01

    Mezzanine module MIC1901: HDAudio, 2xGEth, Sfast, -40..+85’C

    MIC1901-01\COATED

    Mezzanine module MIC1901: HDAudio, 2xGEth, Sfast, -40..+85’C, coated
