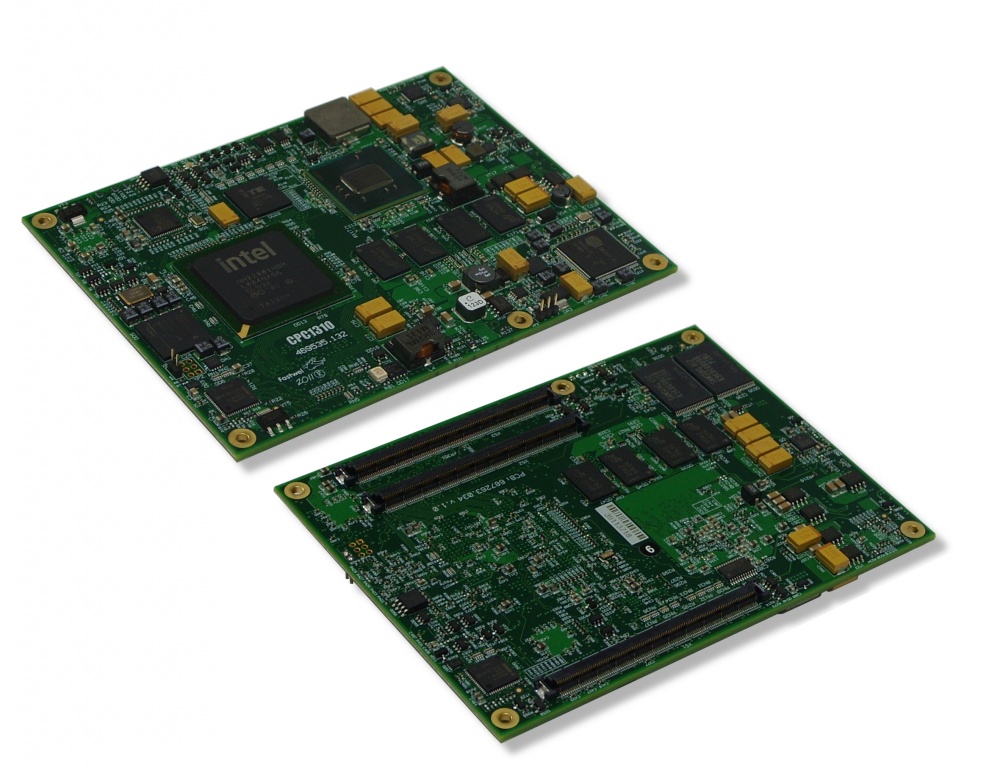

CPC1310

CPC1310 COM Express Intel Atom N450/D510 based module

COM Express Intel Atom N450/D510 based module

CPC1310

    •    COM Express Basic
    •    Intel Atom N450 Single Core/ D510 Dual Core, 1.66 GHz, 512 KB cache/1 MB cache;
    •    512 MB / 1 GB DDR2 SDRAM 667 MHz w/o ECC, 64-bit addressing, soldered
    •    2 GB NAND Flash (dual channel)
    •    SATA interface (50 MB/s read, 35 MB/s write)
    •    Two Gigabit Ethernet channels, 10/100/1000 Mb/s
    •    Eight USB 2.0
    •    Shock/vibration: 50g / 5g (IEC 68-2-27-87; IEC 68-2-6-82)
    •    Operating temperature range: –40°C to +85°C (IEC 68-2-14-84)
    •    MS DOS 6.22, FreeDOS, Windows XP (Embedded), Linux 2.6, QNX 6.5.

    Overview

    Downloads

    Order Info

    Sales & technical support

    CPC1310 complements the line of Fastwel Computer-on-Modules. It is designed to be a computing core of special-purpose embedded systems. The module corresponds to PICMG COM Express rev 2.0 specification, has a Basic format (95x125 mm) and Type-II pinout. The CPU card is based on Intel Pineview-M Single Core (N450)/Pineview-D Dual Core (D510) processor family and Intel ICH8M chipset. The distinctive feature of the board is the extra-connector option, which brings out ISA, Ethernet and GPIO. CPC1310 board is designed to operate in extended temperature range from –40 to +85°C. Coating option (available for every module configuration) allows to increase resistance to aggressive environment. Windows XP Embedded, Linux and QNX are among the supported operating systems.
    Datasheet (PDF 0.73 MB)
    CPC1310-01\coated

    Intel Atom PineviewD (D510) CPU COM Express basic TYPE II, 1 GB DDR2 RAM, 4 GB NAND\coated

    CPC1310-02

    Intel Atom PineviewD (D510) CPU COM Express basic TYPE II (ISA, 1 Gigabit LAN), 1 GB DDR2 RAM

    CPC1310-02\coated

    Intel Atom PineviewD (D510) CPU COM Express basic TYPE II (ISA, 1 Gigabit LAN), 1 GB DDR2 RAM\coated

    CPC1310-03

    Intel Atom PineviewM (N450) CPU COM Express basic TYPE II, 1 GB DDR2 RAM

    CPC1310-03\coated

    Intel Atom PineviewM (N450) CPU COM Express basic TYPE II, 1 GB DDR2 RAM\coated

    CPC1310-04

    Intel Atom PineviewM (N450) CPU COM Express basic TYPE II (ISA, 1 Gigabit LAN), 1 GB DDR2 RAM

    CPC1310-04\coated

    Intel Atom PineviewM (N450) CPU COM Express basic TYPE II (ISA, 1 Gigabit LAN), 1 GB DDR2 RAM\coated

    СРС1310-01

    Intel Atom PineviewD (D510) CPU COM Express basic TYPE II, 1 GB DDR2 RAM, 4 GB NAND
