6U CompactPCI Serial CPU Module

CPC505

- CPU: Intel Xeon E-2276ML 2.0 GHz, (Coffee Lake-H Refresh);
- CPU: Intel Core i3-9100HL 1.6 GHz (Coffee Lake-H Refresh);
- RAM: DDR4-2666 SDRAM, up to 32 GB with ЕСС support;
  Internal Watchdog Timer;
- Hardware monitor: Implemented via PECI / SMBUS interfaces,
  monitoring 3 supply voltages, CPU and PCB temperatures;
- Operating temperature range: -40 to +85 °С (industrial) and 0
  to +70 ° С (commercial);
- Integrated SSD 32 GB;
- FLASH BIOS: 2 x 128 Mb SPI-Flash;
- OS compatibility: Linux Debian 10, Astra Linux Special Edition,
  “Smolensk” releases v1.5, v1.6, Microsoft Windows 10 IoT
  Enterprise 64bit;

Overview Downloads Order Info Sales & technical support

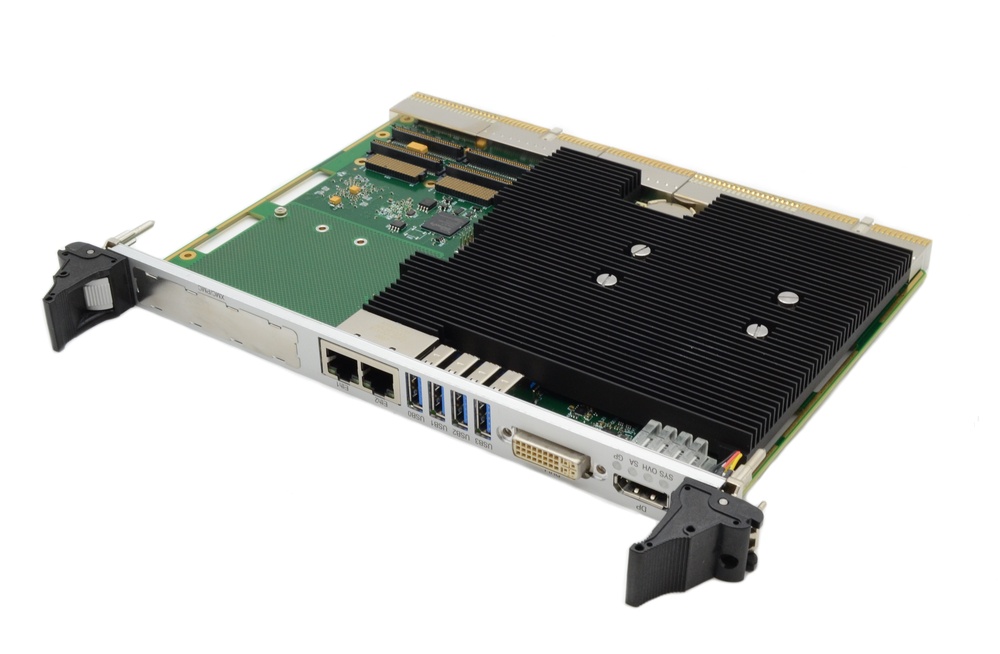

The CPC505 CPU Module is implemented in the standard 6U CompactPCI Serial format with support of XMC/PMC extension modules and RIO modules. The module is based on the 9th generation Intel processors with a modern set of high-speed interfaces and an integrated graphics core. The module is recommended for new designs as a more modern and efficient replacement for the CPC503 module. CPC505 has a similar set of front panel interfaces and is compatible with the RIO587 Rear I/O Module.

Datasheet (PDF 0.27 MB)

CPC505_UM.pdf (PDF 2.46 MB)

CPC505-01

CPU Intel Xeon E-2276ML 2.0 GHz 6C/12T 25W; RAM 32 GB 2666 40 DDR4; from -to +85 °С

CPC505-02

CPU Intel Core i3-9100HL 1.6 GHz 4C/4T 25W; RAM 32 GB 2666 DDR4; from -40 to +85 °С

CPC505-03

CPU Intel Xeon E-2276ML 2.0 GHz 6C/12T 25W; RAM 32 GB 2666 DDR4; from 0 to +70 °С

CPC505-04

CPU Intel Core i3-9100HL 1.6 GHz 4C/4T 25W; RAM 32 GB 2666 DDR4; from 0 to +70 °С
