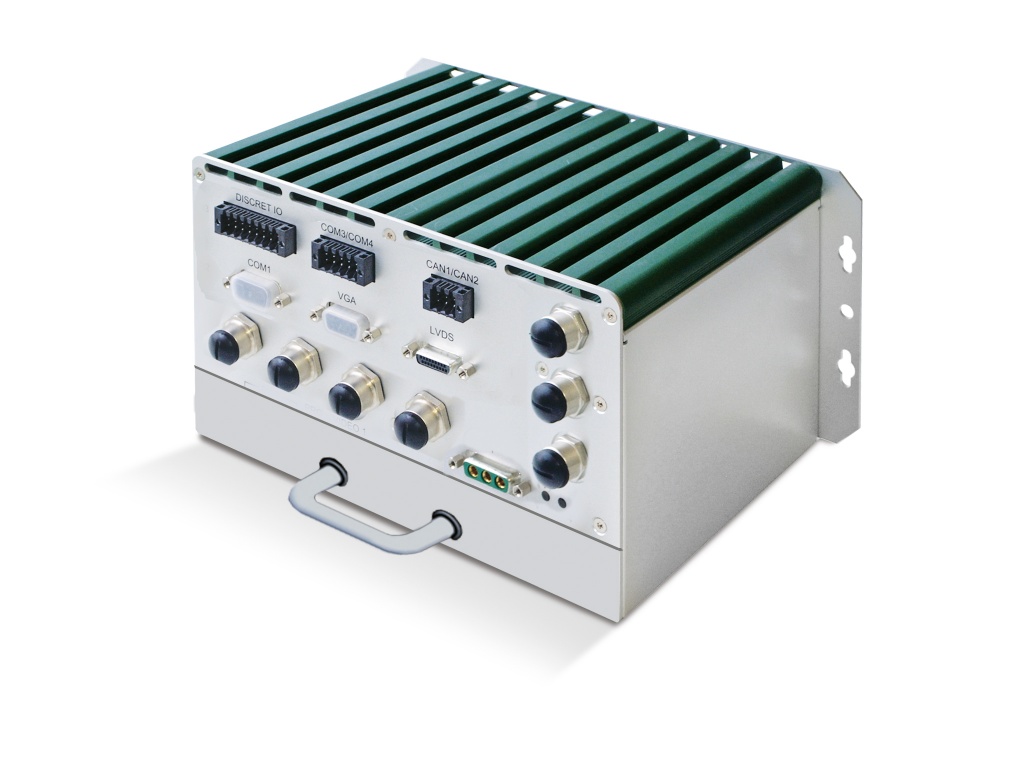

BUK02 - CCTV Video Server for Railway

CCTV platform for Rolling Stock

BUK02 - CCTV Video Server for Railway

    •    CPU: Intel Pineview_M (_D) 1.66 GHz Dual Core (D510)
    •    RAM: 1 GB DDR2 SDRAM 667 MHz
    •    User Interfaces: 2ЧUSB 2.0, 3ЧGigabit Ethernet,
    •    2xRS_422/485, 2xCAN, LVDS;
    •    Video output: Connection of up to 8х analog
    •    cameras of PAL/NTSC standard
    •    Data storage subsystem: 2x removable SATA drives up to 1 TB
    •    Supported OS: Linux 2.6
    •    IP20
    •    EN50155 compliant

    Overview

    Downloads

    Sales & technical support

    BUK 02 video server is designed for application in rolling equipment (railways), used in driver's cabin as the storage device for system video monitoring data. BUK02 rugged computer from Fastwel is fully configurable and can be customized according to the specific demands of your application. The device is designed for use in transport under conditions of adverse mechanical and electromagnetic effects in the wide range of environmental temperatures (EN50155).
    Datasheet (PDF 0.52 MB)
