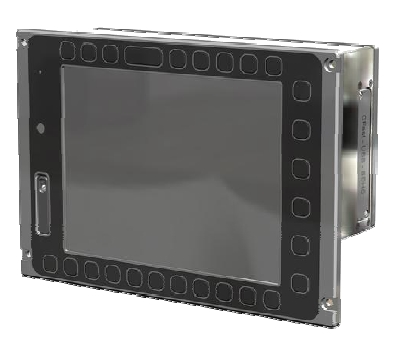

BS04 - 10.4" Rugged HMI Panel PC

On-board automatic control systems

•    LCD 10.4"
•    IP65 at front panel
•    2хCFAST, 3хUSB (one of them on the front), 2xEthernet, 2xCAN, 2xRS422/RS485, 1xSDHS. AUDIO OUT
•    Operating temperature range: –50°С...+60°С
•    Shock/vibration: 10g/1g
•    OS compatibility: FDOS 6.22, QNX 6.4, Linux 2.6, Windows XPe, CE5.0.

Overview Downloads Sales & technical support

BS04 rugged HMI panel PC is developed as a replacement for PCs of the previous generation – BS03. The device is designed for use in transport and industry under conditions of adverse mechanical and electromagnetic effects in the wide range of environmental temperatures. The structure of the device enables to flexibly adapt it to the customer's requirements.

BS04 – rugged HMI computer from Fastwel is fully configurable and can be customized according to the specific demands of your application.

Datasheet (PDF 0.7 MB)
