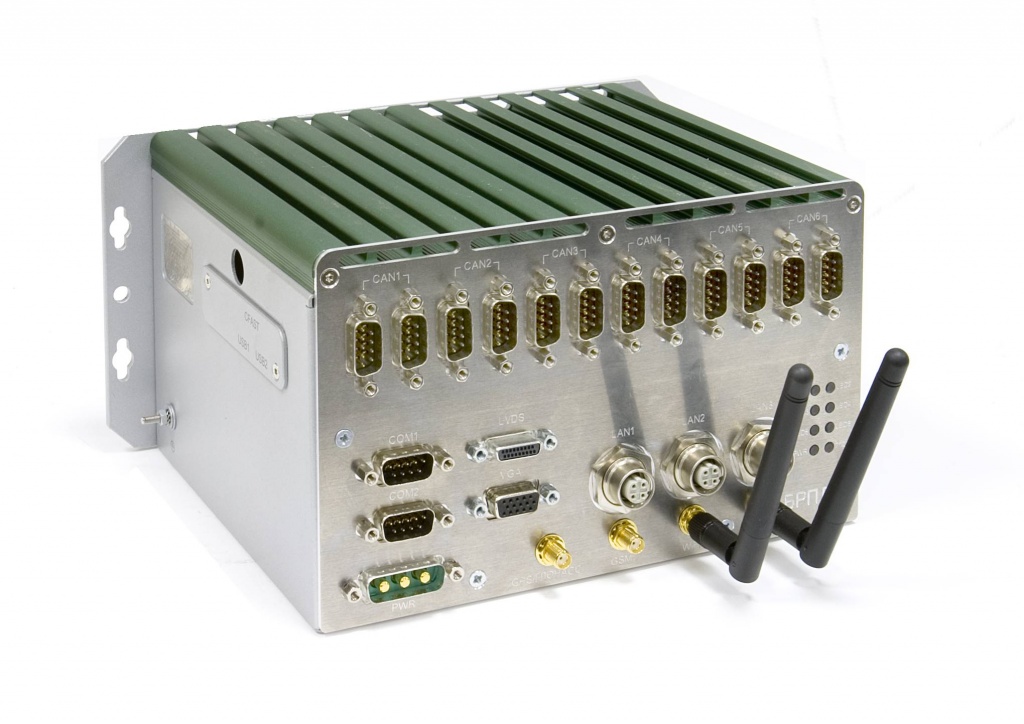

BRPD01 - Data recording and transfer unit (EN50155 compliant)
• CPU Intel Pineview-M (-D) 1.66 GHz Dual Core (D510)
• RAM 1 GB, soldered
• Flash Drive: 4 GB NAND, soldered
• CFAST SATA DISK slot (up to 256 GB)
• GPS\GLONASS
• GSM\GPRS
• Wi-Fi 802.11 a/b/g/n
• Support of 6 independent CAN2.0 channels or 2 MVB channels
• RS-485
• 3×Ethernet M12 10\100
• Output of graphics data to LVDS or VGA panel
• Conductive cooling
• Uninterruptible power supply with system support for 2 minutes
• 8×Digital LED
• Supported OS: FREEDOS 6.22, Windows XPe, CE 5.0, Linux 2.6
• Operating temperature range: –40°С to +80°С
• RAM 1 GB, soldered
• Flash Drive: 4 GB NAND, soldered
• CFAST SATA DISK slot (up to 256 GB)
• GPS\GLONASS
• GSM\GPRS
• Wi-Fi 802.11 a/b/g/n
• Support of 6 independent CAN2.0 channels or 2 MVB channels
• RS-485
• 3×Ethernet M12 10\100
• Output of graphics data to LVDS or VGA panel
• Conductive cooling
• Uninterruptible power supply with system support for 2 minutes
• 8×Digital LED
• Supported OS: FREEDOS 6.22, Windows XPe, CE 5.0, Linux 2.6
• Operating temperature range: –40°С to +80°С
Overview
Downloads
Sales & technical support
Data recording and transfer unit (EN50155 compliant)
Datasheet
(PDF 0.47 MB)
