Railway solutions
On-board automatic control systems

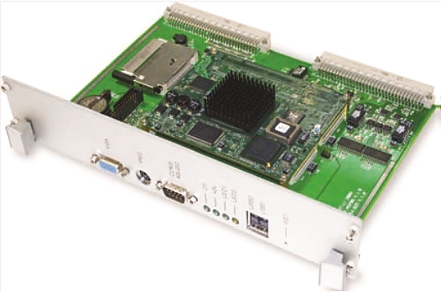

BK01-6U AMD Geode LX800 based processor module
6U AMD Geode LX800 based processor module
256 MB RAM, soldered
Flash-drive: 64 MB, soldered
Connector for Compact Flash
Watchdog timer
RTC
2×CAN, galvanically isolated; 8×RS232; Ethernet 10/100 Mb/s, galvanically isolated; 2×USB; SVGA; PS/2; 16x digital input channels; 8x digital output channels
Operating temperature range: –40°С to +85°С
Supported OS: FREEDOS 6.22, Windows XPe,
CE 5.0, Linux 2.6, QNX 6.4
EN50155 compliant
256 MB RAM, soldered
Flash-drive: 64 MB, soldered
Connector for Compact Flash
Watchdog timer
RTC
2×CAN, galvanically isolated; 8×RS232; Ethernet 10/100 Mb/s, galvanically isolated; 2×USB; SVGA; PS/2; 16x digital input channels; 8x digital output channels
Operating temperature range: –40°С to +85°С
Supported OS: FREEDOS 6.22, Windows XPe,
CE 5.0, Linux 2.6, QNX 6.4
EN50155 compliant
Overview
Downloads
Sales & technical support
6U AMD Geode LX800 based BK01 processor modules are intended for transportation industry and applied as a part of microprocessor-based systems of railway equipment control and for implementation of control and diagnostics algorithms using power and supporting equipment of locomotives and electric locomotives. The structure of the device enables to flexibly adapt it to customer requirements.
BK01 – rugged computer from Fastwel is fully configurable and can be customized according to the specific demands of your application
BK01 – rugged computer from Fastwel is fully configurable and can be customized according to the specific demands of your application
Datasheet
(PDF 0.4 MB)
