BUK01 - Intel Atom D510 based digital video recorder
CCTV platform for Rolling Stock

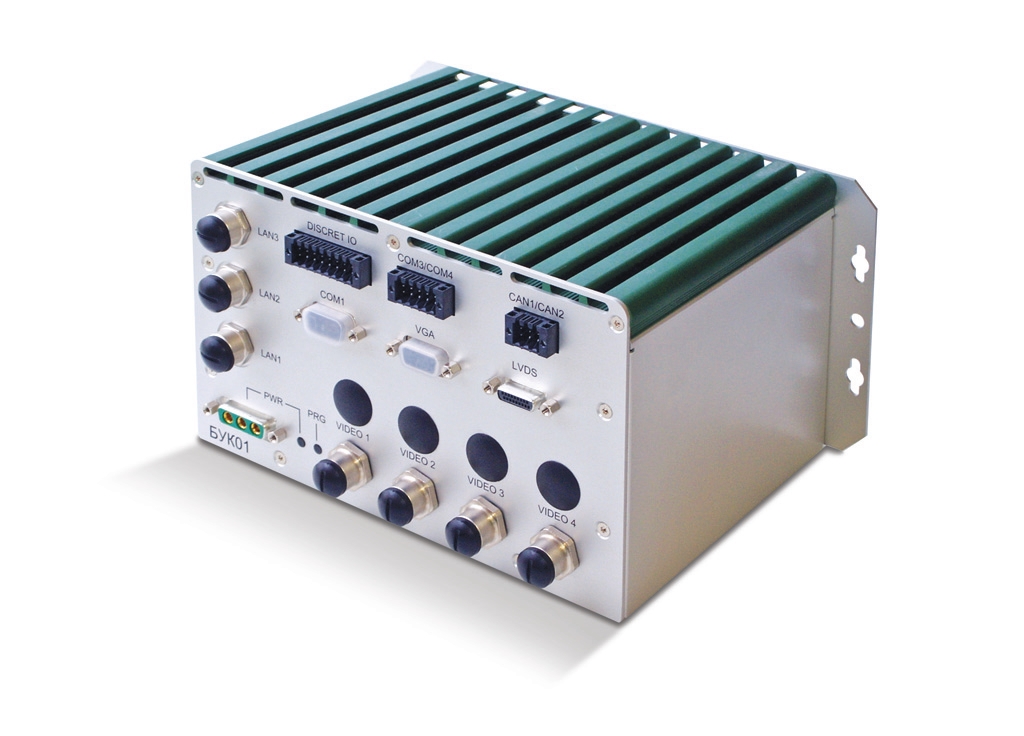

BUK01 - Intel Atom D510 based digital video recorder
• Intel Pine View M ( D) 1,66 GHz Dual Core (D510)
• IP20
• 1 GB DDR2 SDRAM 667 MHz
• 2×USB 2.0, 3xGigabit Ethernet, 2×RS 422/485, 2×CAN, LVDS
• Operating temperature range: –50°С to +50°С
• MTBF: no less than 10 000 hours
• Supported OS: FREEDOS, Linux 2.6.26
• EN50155 compliant
• IP20
• 1 GB DDR2 SDRAM 667 MHz
• 2×USB 2.0, 3xGigabit Ethernet, 2×RS 422/485, 2×CAN, LVDS
• Operating temperature range: –50°С to +50°С
• MTBF: no less than 10 000 hours
• Supported OS: FREEDOS, Linux 2.6.26
• EN50155 compliant
Overview
Downloads
Sales & technical support
BUK01 video recorder is designed for application in rolling equipment (railways) and is intended for collection, storage, display and transfer of video information via wire/wireless channels in automated control systems.
BUK01 - rugged computer from Fastwel is fully configurable and can be customized according to the specific demands of your application.
BUK01 - rugged computer from Fastwel is fully configurable and can be customized according to the specific demands of your application.
Datasheet
(PDF 0.44 MB)
