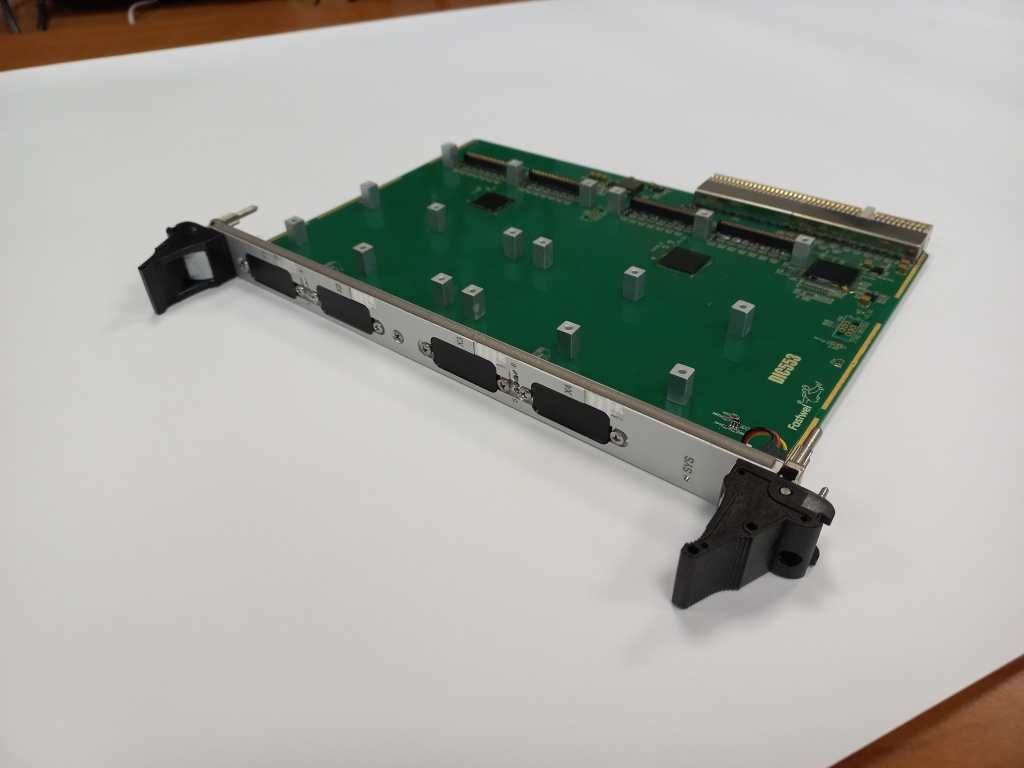

DIC553 6U CompactPCI® I/O Carrier Module

6U CompactPCI® I/O Carrier Module

DIC553

    - Interface with system bus: CompactPCI 32Bit, 33MHz;
    - 4 x UART interfaces;
    - 4 x SPI interfaces with maximum world length of 32 bit;
    - 16 bit parallel port;
    - Overall dimensions: no more than 267.0 mm x 214.0 mm x 21.0
      mm;
    - Consumption current and power supply voltage (except for
      mezzanines power supply): +3.3V: no more than 3.6 A;
    - Weight: no more than 0.5 kg;
    - Operating temperature range: from -40 to +85°C;
    - MTBF: no less than 100,000 hours;

    Overview

    Downloads

    Order Info

    Sales & technical support

    The DIC553 Module is the I/O Carrier Module implemented in the 6U CompactPCI® standard. The module has a capability of installation up to 4 x MIC10хх standard size mezzanine boards.
    Datasheet (PDF 0.23 MB)
    DIC553-01

    6U CompactPCI® I/O Carrier Module; 4 x UART interfaces, 16 bit parallel port, 32 bit Wishbone-compatible bus, overall dimensions: no more than 267.0 mm x 214.0 mm x 21.0 mm, weight: no more than 0.5 kg. Conformal coating option.
