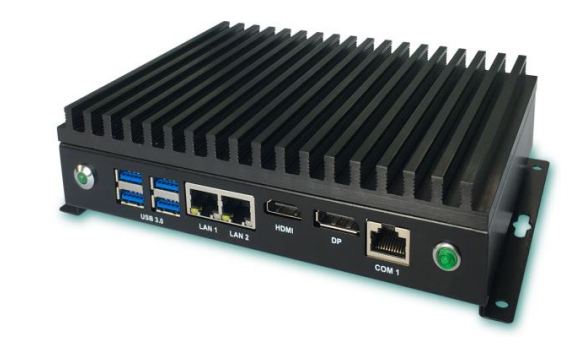

ER-3100 (Advantix - powered by Fastwel) Embedded Fanless Computer

Embedded Fanless Computer

ER-3100 (Advantix - powered by Fastwel)

    •    CPU: Intel® Celeron® N3350 (2x cores, 1.1GHz/2.4GHz turbo, 2MB L2, 6W) or Intel® Pentium® N4200 (4x cores, 1.1GHz/2.5GHz turbo, 2MB L2, 6W);
    •    RAM: 2 – 8GB, 2 x DDR3L-1600/1866, non ECC;
    •    GPU: integrated Intel® HD Graphics 500/505, up to 2GB of video memory;
    •    Network: 2x i210AT PCIe Gigabit LAN controllers;
    •    Audio: 2x channel, HD Audio;
    •    Operating temperature range: 5°C ~ +50°C (with SSD), 5°C ~ +40°C (with HDD);
    •    OS compatibility: Windows 10 IoT Enterprise 64 bit, Linux;



    Order Info

    Sales & technical support

    ER-3100 is the initial model in the AdvantiX (powered by Fastwel) line of fanless computers, characterized by their cost-efficiency, compactness and high functionality. The computers support two independent digital video outputs (Dual Head).
    Available for order until 2022+.
    Datasheet (PDF 0.89 MB)

    Embedded Computer ER-3100 / Celeron® N3350 / 4GB DDR3 / 120GB SSD, 5..+50;


    Embedded Computer ER-3100 / Pentium® N4200 / 4GB DDR3 / 120GB SSD, 5..+50;


    Custom configuration in accordance with the customer requirements. Delivery time – from 2x weeks (depending on components availability).
