Fanless Embedded Computer
ER-3101 (Advantix - powered by Fastwel)
- CPU: Intel® Celeron® N3350/Intel® Pentium® N4200;
- RAM: 2 – 8GB, 2 x DDR3L-1600/1866, non ECC;
- GPU: integrated Intel® HD Graphics 500/505, 2GB;
- Network: 2x i210AT PCIe Gigabit LAN controllers;
- Expansion slots: 1 x Mini-PCIe internal slot (Full-sized), 1 x
M.2 (B-key);
- Operating temperature range: from +5°C to +50°C (with
SSD), from +5°C to +40°C (with HDD);
- Power supply: 9-36V DC;
- Cooling: Convection, passive;
- OS compatibility: Windows 10 IoT Enterprise, Linux;
- RAM: 2 – 8GB, 2 x DDR3L-1600/1866, non ECC;
- GPU: integrated Intel® HD Graphics 500/505, 2GB;
- Network: 2x i210AT PCIe Gigabit LAN controllers;
- Expansion slots: 1 x Mini-PCIe internal slot (Full-sized), 1 x
M.2 (B-key);
- Operating temperature range: from +5°C to +50°C (with
SSD), from +5°C to +40°C (with HDD);
- Power supply: 9-36V DC;
- Cooling: Convection, passive;
- OS compatibility: Windows 10 IoT Enterprise, Linux;
Overview
Downloads
Order Info
Sales & technical support

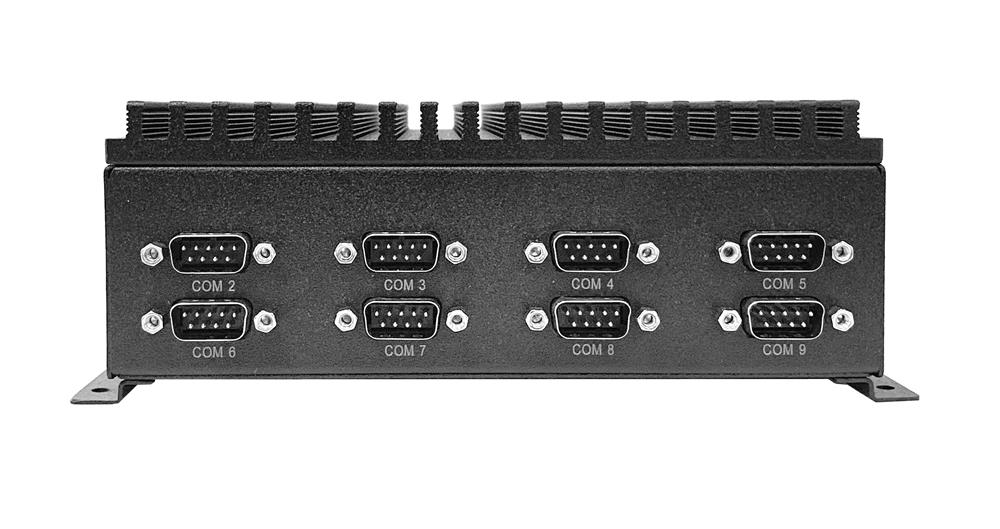

ER-3101 is the entry-level model in the AdvantiX (powered by Fastwel) line of fanless computers, which has 9-12 COM-ports and other expansion capabilities. The device is characterized by costefficiency and compact size. The computers support two independent digital video outputs (Dual Head).
Datasheet
(PDF 0.94 MB)
ER-3101 |
Fanless Embedded Computer / Celeron® N3350 / 4GB DDR3 / 120GB SSD, 5..+50; |
ER-3101-4S |
Fanless Embedded Computer / Pentium® N4200 / 4GB DDR3 / 120GB SSD, 5..+50; |
ER-3101-XXX |
Custom configuration in accordance with the customer requirements. Delivery time – from 2x weeks (depending on components availability). |
