High-Performance Fanless Computer
ER-7100 Intel® Core™ i7/i5/i3/Pentium/Celeron
- CPU: Intel® Core™ i7/i5/i3/Pentium/Celeron CPUs of 6/7 generation;
- Chipset: Intel® Q170;
- RAM: 4 – 32GB, 2 x DDR4 SO-DIMM, non ECC, 1/2 channel;
- GPU: integrated, Intel HD Graphics 510/530/610/630, support of 3 x independent video outputs, 4K support;
- Network: 2 x Ethernet 10/100/1000 controllers, Intel i219LM + i211AT;
- Power supply: 12-24V DC;
- Operating temperature range: +5°C ~ +40°C;
- OS compatibility: Microsoft Windows 7 (32/64 bit, only Core 6 generation), Windows 10 (64 bit), Linux;
- Chipset: Intel® Q170;
- RAM: 4 – 32GB, 2 x DDR4 SO-DIMM, non ECC, 1/2 channel;
- GPU: integrated, Intel HD Graphics 510/530/610/630, support of 3 x independent video outputs, 4K support;
- Network: 2 x Ethernet 10/100/1000 controllers, Intel i219LM + i211AT;
- Power supply: 12-24V DC;
- Operating temperature range: +5°C ~ +40°C;
- OS compatibility: Microsoft Windows 7 (32/64 bit, only Core 6 generation), Windows 10 (64 bit), Linux;
Overview
Downloads
Order Info
Sales & technical support

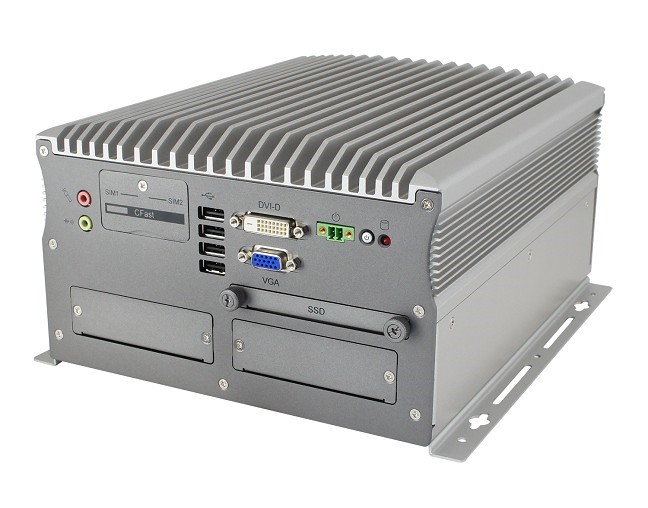

ER-7100(Advantix – powered by Fastwel) is a fanless computer characterized by its highperformance, fast video subsystem and great expansion capabilities enable to create wide range solutions based on ER-7100 – from data acquisition systems to video servers. Available for order until 2022+.
Datasheet
(PDF 0.97 MB)
ER-7100 |
High-Performance Embedded Computer / Core i5-6500TE 2.3GHz / 8GB DDR4 / 240GB SSD / external power supply unit; |
ER-7100-XXX |
Custom configuration in accordance with the customer requirements. Delivery time – from 2x weeks (depending on components availability). |
